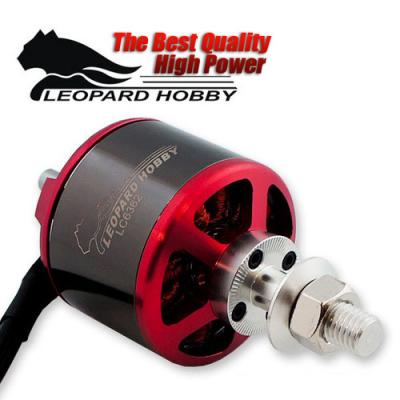

Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17)
모터규격:62.6x62mm
현재 상품 카테고리
![[알씨뱅크] Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17)](/shop/data/goods/1574311049000_l.jpg)
판매가격 : 182,000원
상품번호 : QQ22769
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
상품상세설명
Leopard LC6362-6T 350KV Outrunner Brushless Motor (Prop 15-17")
![[알씨뱅크] Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17) 1](/shop/data/editor/1578902207390.jpg)
●제원

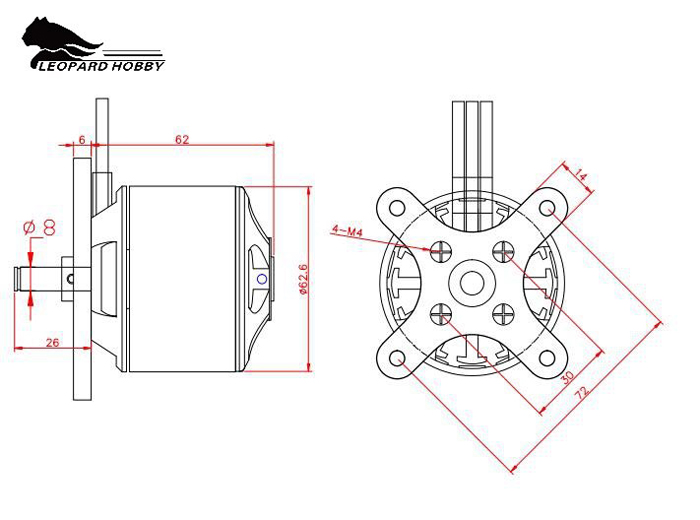

| LC6362 Series Specification （Dia.×Length：Φ63.0mm×62.0mm） | ||||||||||
| Length of extend shaft ： | 20(mm) | |||||||||
| Shaft Dia. ： | 8(mm) | |||||||||
| Weight： | 563(g) | |||||||||
| Model | KV | No-load current (A) | Max Amps (A) | Propeller | Working Voltage (V) | Working Current (A) | Pull (g) | Power (w) | Resistance | Load current (A) |
| LC6362-4T | 540 | 7.4/20V | 100 | 1560 | 11.1 | 23 | 2000 | 255.3 | 0.0065 | 85 |
| 12.6 | 27 | 2350 | 340.2 | |||||||
| 14.8 | 35 | 3200 | 518 | |||||||
| 16.8 | 43 | 3900 | 722.4 | |||||||
| 1540 | 11.1 | 16 | 1400 | 177.6 | ||||||
| 12.6 | 19.5 | 1800 | 245.7 | |||||||
| 14.8 | 24.5 | 2400 | 362.6 | |||||||
| 16.8 | 30 | 3200 | 504 | |||||||
| 18.5 | 35.5 | 3800 | 656.75 | |||||||
| 21 | 44 | 4800 | 924 | |||||||
| 25.2 | 62.5 | 6400 | 1575 | |||||||

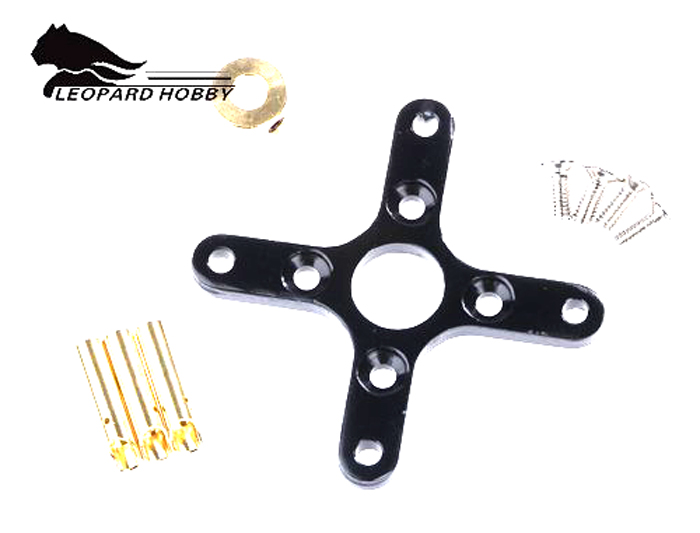

●포함 기자재
1 x motor
1 x prop adaptor
3 x connectors
1 x cross type motor mount
●Image
![[알씨뱅크] Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17) 2](/shop/data/editor/1578902207411.jpg)
![[알씨뱅크] Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17) 3](/shop/data/editor/1578902207432.jpg)
![[알씨뱅크] Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17) 4](/shop/data/editor/1578902207453.jpg)
![[알씨뱅크] Leopard LC6362-4T 540KV Outrunner Brushless Motor (Prop 15-17) 5](/shop/data/editor/1578902207474.jpg)
