[TR] PWM Pulse Detector(999us~1999us)

TAROT사의 PWM Pulse Detector.

Pixhawk 등과 같은 FC부터 범용 수신기에 이르기까지 대부분의 RC Device의 PWM 레인지를 확인할 때 유용한 툴.

수신기 또는 FC의 5V 전압으로 구동되며 999μs ~ 2199μs 까지 검출이 가능합니다.

케이블 하네스 포함.

<Description>

• - Upgraded PMW tester, smaller and better performance
  - For testing receiver,fight controller and servo
  - Can analyze the problem of accurate positioning
  - Can be used as see-saw testing of remote control( with it you can do it by yourself without others' help.)
  - Display the pulse width and frequency of PMW(slide the switch to select), accurate reading, quick display update
  - Display"NO" when no signal(when it losses the PMW signal more than 70s, it will be regarded as no signal)
  - With "+""-" for anti-reverse connection

  <Specifications>
  - Input : 3.6V-5.8V
  - Size : 37x24x12mm

•

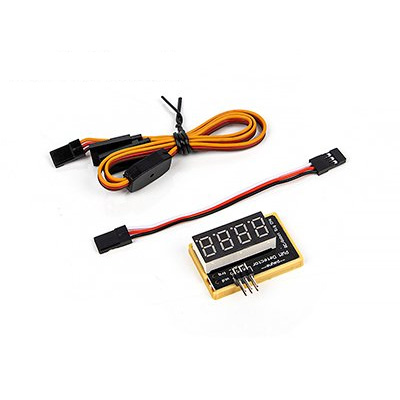

<제품이미지>
