상품상세설명

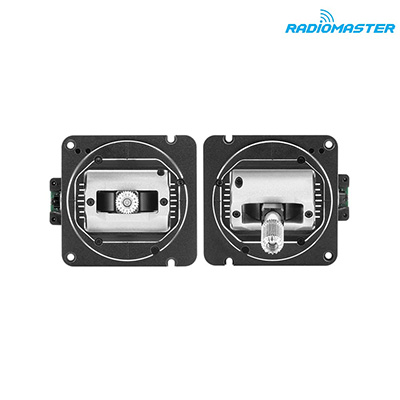

RadioMaster AG02 CNC Hall Gimbals for TX15 & TX16S & Boxer Radio

- 라디오마스터 풀사이즈 CNC 홀센서 짐벌 세트입니다.
- 주요파츠가 CNC알루미늄으로 제작되어 정확한 스틱감을 느끼실 수 있습니다.
- 외부에서 스프링 장력 및 스틱의 작동범위를 조절할 수 있습니다.
- 차세대 홀센서 짐벌로 더욱 빠른 응답성을 제공합니다.
- 4중 정밀 베어링적용으로 탁월한 스틱감을 선사합니다.
- 블랙 색상입니다.

*적용가능 모델 : TX16S, TX15, Boxer

구성

짐벌 좌, 우 1세트

The AG02 gimbals are precision-engineered from machined aluminum, offering adjustable travel on both vertical and horizontal axis for highly responsive, customizable control.

A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, delivering smoother, faster stick input for improved response.

Equipped with advanced Hall effect sensors, the AG02 provides low-noise, rapid response, and exceptional accuracy.

The anodized aluminum finish—available in Black, Red, Blue, Green or Gold—offers durability with a refined, professional look.

Mounting is fully compatible with AG01 gimbals, ensuring an easy upgrade path.

Features

• Full Aluminum Construction: Key structural areas are optimized to reduce rotational inertia by over 20% while maintaining rigidity, delivering smoother and more responsive control.

• Next-Generation Low-Noise Hall Sensors: Offer ultra-fast response without compromising accuracy or stability.

• Adjustable Travel:  Vertical and horizontal Travel adjustment for the perfect feel for any pilot.

• Quad precision bearings: For unparalleled stick feel.

• 100% Mounting Compatibility with Previous Generations: If you already use full-size RadioMaster gimbals, the AG02 can be directly installed as an upgrade—no modifications required.

• Designed for RadioMaster TX16, TX15,  Boxer Radio Controllers

Specifications

Item: AG02 CNC Hall Gimbals Set

Sensor Type: Hall Analog

Operating Voltage: DC 3.3V

X-Axis Travel Adjustment Range: 30° – 56°

Y-Axis Travel Adjustment Range: 38° – 54°

Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported

Spring Tension Adjustment Without Disassembly: Supported

Quad Ball Bearings: Yes

Operating Temperature Range: -20°C to +85°C

Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm

Weight: 73 g ± 1 g (per unit)

Gimbal Sticks: M4
