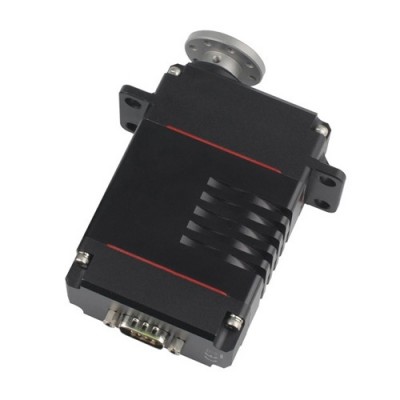

![[알씨뱅크] SG33BL [HITEC] SG33BLS/BLT 산업용 서보 33mm BLDC Steel / Titanium Gear Industrial Version](/shop/data/goods/1582680852.jpg)
※문의시 상품번호를 알려주세요
상품상세설명
SG33BL 은 ‘S’ , ‘T’ 두가지 모델이 있습니다.
S 는 Speed 모델, T 는 Torque 모델 입니다.
SG33BLT - 33mm BLDC Steel Gear Waterproof
Product Description
Dual Ball Bearing Supported Output Shaft Meticulously engineered to meet the
rigorous of commercial applications, our industrial series employs unique and
innovative features, producing the highest level of servo actuator sophistication,
precision and reliability.
Features
· Programmable Digital Circuit w/MOSFET Amplifier
· High Performance, Long Life BLDC Motor
· Magnetic Encoder Position Sensor
· Wide Operating Voltage Range
· Robust, Hardened Steel Gears
· Low Gear Backlash (<0.5°)
· Dual Ball Bearing Supported Output Shaft
· Needle Bearing Supported Idlers
· Rugged Anodized Aluminum Alloy Case
· IP68 Waterproof Rating
· Capable of 360˚ Proportional Rotation (16-turns)
· RS-485, PWM or TTL Control Options Available
· D-SUB9 Connector
· Gear Protection System
· Customization and Modification Options Available
· Custom Connector Options Available
Part and Accessories
· Replacement Gear Set
· Replacement Case Set
· Applicable Horns and Mounting Hardware
SG33BLS/BLT Actuator Specifications
Performance Specifications | |
Operating Voltage Range (volts DC) | 9.0V ~ 15.0V |
No Load Speed (second @ 60°) | 0.20 ~ 0.17 |
No Load Speed (RPM) | 49 ~ 60 |
No Load Speed (deg. per sec.) | 295° ~ 360° |
Maximum Torque Range (oz. / in.) | 1,843 ~ 2,253 |
Maximum Torque Range (kg. / cm.) | 132.7 ~ 162.2 |
Maximum Torque Range (Ncm.) | 1,301.6 ~ 1,590.9 |
Current Draw at Idle (mA) | 45 |
No Load Operating Current Draw (mA) | 500 |
Stall Current Draw (mA) | 10,000 |
Physical Specifications | |
Dimensions (inches) | 2.52 x 1.30 x 3.74 |
Dimensions (millimeters) | 64.0 x 33.0 x 95.0 |
Weight (ounces) | 14.11 |
Weight (grams) | 400.0 |
Motor Type | BLDC |
Rated Motor Lifecycle | 1,000 Hours |
Position Sensor | Magnetic Encoder |
Position Sensor Rated Lifecycle | 1 Million Cycles |
Gear Material | MPD 1stGear&3Steel Gears |
Bearing Type | Dual Ball & Needle Bearings |
Output Shaft (type / Ømm) | 6.55mm Square |
Case Material | Aluminum Alloy |
Dust / Water Resistance | IP68 |
