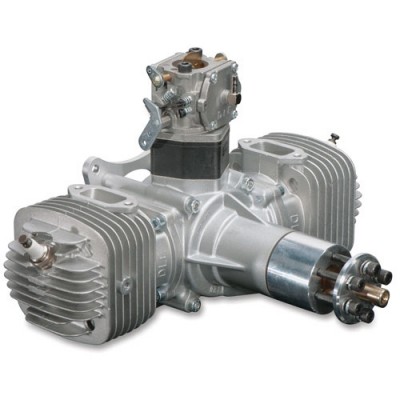

Twin-cylinder power and efficiency

The DLE-120 delivers 50 pounds of static thrust—more than enough power for intense 3D maneuvers. Twin opposed cylinders reduce vibration and engine wear and increase performance.

Mufflers, standoffs and electronic ignition boost performance even further. The DLE-120 delivers the most punch at the lowest weight and the lowest price of any engine in its class. Pick up the DLE-120 and fly with performance-fueled confidence.

• Efficient, light design for a high power-to-weight ratio
• Light pistons for fast acceleration, excellent compression and low vibration
• CNC-machined parts for high performance and long life
• Sealed crankshaft bearings
• Improved piston and cylinder contact area for increased engine lifespan.
• Matched mufflers included for optimized power
• Electronic ignition module with spark plugs
• Standoffs and mount
• Spiral wire wrap

Specifications:
Stock Number: DLEG0120
Displacement: 120.0 cc (7.3 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 6.38 lb (2.895 kg)
Output: 12 hp @ 7,500 rpm
Includes: Electronic ignition module, mufflers, spark plugs, mount, standoffs, spiral wire wrap & connector safety clips
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 26x10, 26x12, 27x10, 28x10

DLE-120 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiFe or LiPo pack is used.)
Gas/Oil Mix: 30:1
Compression Ratio: 10.5:1
Replacement Spark Plug: DLEG1326
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
Weight Breakdown: Engine: 5.34 lb (2.42 kg); Muffler 1: 3.6 oz (103 g); Muffler 2: 3.9 oz (111 g); Ignition Module: 5.3 oz (149 g); Miscellaneous: 4 oz (112 g)

Recommended Products:
HCAM6416 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ2710 Xoar 27x10 Beechwood Propeller

Recommended Options:
DLEG1326 DLE 12-Y26 Spark Plug DLE-120
FPWM1212 FlightPower FPRX 7.4V 2100mAh LiPo Battery
HCAM6426 Hobbico LifeSource 6.6V 1800mAh 10C LiFe Pack
ONXM2205 Onyx NiMH Receiver 6.0V 2000 AA Flat Universal Plug
FPWM0290 FLightPower 5A Voltage Regulator (if an LiFe or LiPo pack is used)
XOAQ2610 Xoar 26x10 Beechwood Propeller
XOAQ2612 Xoar 26x12 Beechwood Propeller
XOAQ2810 Xoar 28x10 Beechwood Propeller

See your favorite hobby retailer for additional recommendations.
