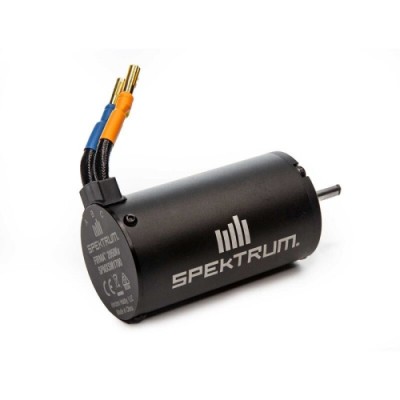

[SPEKTRUM] FIRMA 2050KV BRUSHLESS MOTOR
제품코드 : SPMXSM1700
상품번호 : QQ61517
현재 상품 카테고리
![[알씨뱅크] SPMXSM1700 [SPEKTRUM] FIRMA 2050KV BRUSHLESS MOTOR](/shop/data/goods/1615197438112.jpg)
판매가격 : 176,000원
상품번호 : QQ61517
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
재입고 요청하기
실시간 문의 (오전10시~오후6시)
상품상세설명
Overview
The Firma 2050Kv brushless motor is a perfect option for 1/7 and 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
- Perfect upgrade for 1/7 and 1/8 scale racers and bashers
- Safe-D Shaft provides a C-clip locking point to prevent pinion gear slip
- High efficiency design
- 6S LiPo power capable
- High-quality 4-pole sintered rotor
- 4mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 4mm shaft
| Application | 1/8 scale buggy, truggy or monster trucks with 3S-6S LiPo setup |
| Connector Type | 4mm Bullet |
| Efficiency | 85% |
| Input Voltage | 12 - 25.2V |
| Maximum Continuous Current | 62A |
| Motor Design | Inrunner |
| Motor Size | 4074 |
| Motor Type | Brushless - Sensorless |
| Number of Poles | 4 |
| Outer Diameter | 1.57" (40 mm) |
| Output | 5050W |
| Product Length | 2.9" (74 mm) |
| Product Weight | 0.85lbs (415g) |
| RPM/Volt (Kv) | 1900Kv |
| Shaft Diameter | 0.157" (4 mm) |
| Size | 4074 |
