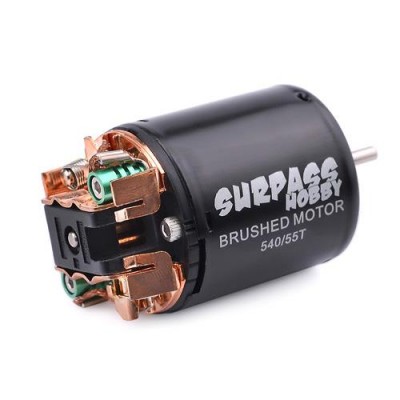

![[알씨뱅크] 697175079340 [SURPASS HOBBY] 540 Brushed Motor 3-Slot for 1/10th 30T RPM: 16200](/shop/data/goods/1691139049015.jpg)
※문의시 상품번호를 알려주세요
상품상세설명
![[알씨뱅크] 697175079340 [SURPASS HOBBY] 540 Brushed Motor 3-Slot for 1/10th 30T RPM: 16200 1](https://team-james.com:450/Upload/DEditor/product/20230803181837.jpg)
Surpass Hobby 540 21T/27T/35T/45T/55T/80T 6-8.4V Brushed Motor
-13T Brushed Motor for 1/10 Traxxas Ford F-150 RC Car
-17T Brushed Motor for 1/10 On-road Drift Touring Racing Car Vehicle
-21T 4 Poles Brushed Motor for 1/10 1/12 4WD RC Car
-23T Brushed Motor for 1/10 On-road Drift Touring RC Car
-27T Sensored Brushed Motor for 1/10 RC Car
-35T Brushed Motor for HSP 1/10 94123 On-road Driting Car
-80T Brushed Motor for 1/10 Off-Road Rock Crawler Climbing Car
Feature:
-Model: 540
-Outside diameter: 36MM
-Total length: 57MM (without motor shaft)
-Motor shaft length: 12MM
-No load current: 1.4A
-7.2V voltage no-load speed: 21T-20000rpm /27T-16800rpm /35T-12000rpm /45T-10000rpm /55T-8000rpm/80T-5400 speed ± 10% rpm (run after 1 minute test)
-The motor supports up to 12V. Suggested use 7.2-7.4V battery
-Motor shaft diameter: 3.17MM
-The latest 540 brush motor, large torque suitable for climbing car big foot car drift car , two-way bearing strong magnetic force, small heat big power, can also change the carbon brush, because the carbon brush external configuration, can work for a long time.
-Drift car suggested use 21T,27T
-Big foot car recommended use 35T,45T
-Climbing car suggest generally 55T
540 21T Brushed Motor：
Name:540 Motor(21T)
Motor Shaft Diameter:3.175mm
Voltage:6-8.4V
Rotating Speed:20000RPM
Current:2.8A
Torque:2100g.cm
540 27T Brushed Motor：
Name:540 Motor(27T)
Motor Shaft Diameter:3.175mm
Voltage:6-8.4V
Rotating Speed:16800RPM
Current:2.7A
Torque:2000g.cm
540 35T Brushed Motor：
Name:540 Motor(35T)
Motor Shaft Diameter:3.175mm
Voltage:6-8.4V
Rotating Speed:12000RPM
Current:1.7A
Torque:1900g.cm
540 45T Brushed Motor：
Name:540 Motor(45T)
Motor Shaft Diameter:3.175mm
Voltage:6-8.4V
Rotating Speed:10000RPM
Current:1.4A
Torque:1700g.cm
540 55T Brushed Motor：
Name:540 Motor(55T)
Motor Shaft Diameter:3.175mm
Voltage:6-8.4V
Rotating Speed:8000RPM
Current:1.0A
Torque:1700g.cm
540 80T Brushed Motor：
Name:540 Motor(80T)
Motor Shaft Diameter:3.175mm
Voltage:6-8.4V
Rotating Speed:5400RPM
Current:0.85A
Torque:1800g.cm
