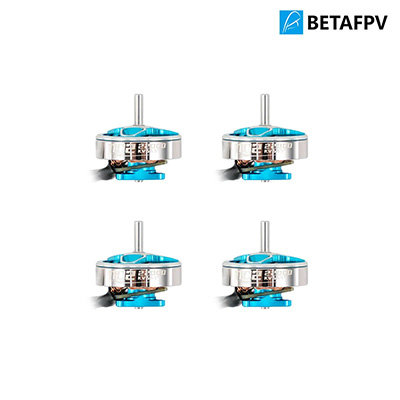

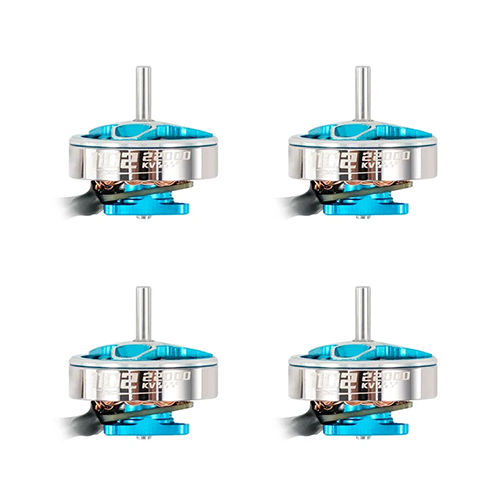

BETAFPV 1102 22000KV 모터 (4pcs)

BETAFPV 1102-22000KV Brushless Motor (4pcs, 37mm)

- Meteor75 Pro용 순정모터입니다.

구성

모터 4개 (색상 은색)

관련 볼트 1세트

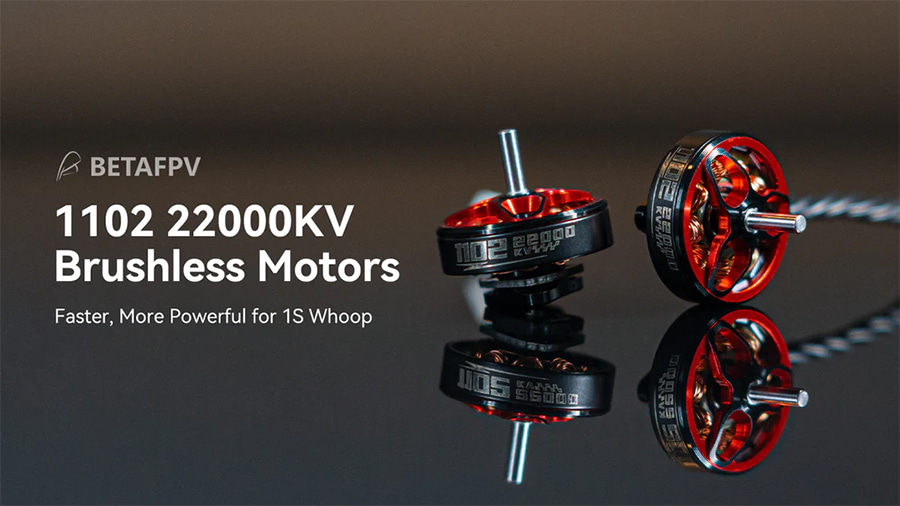

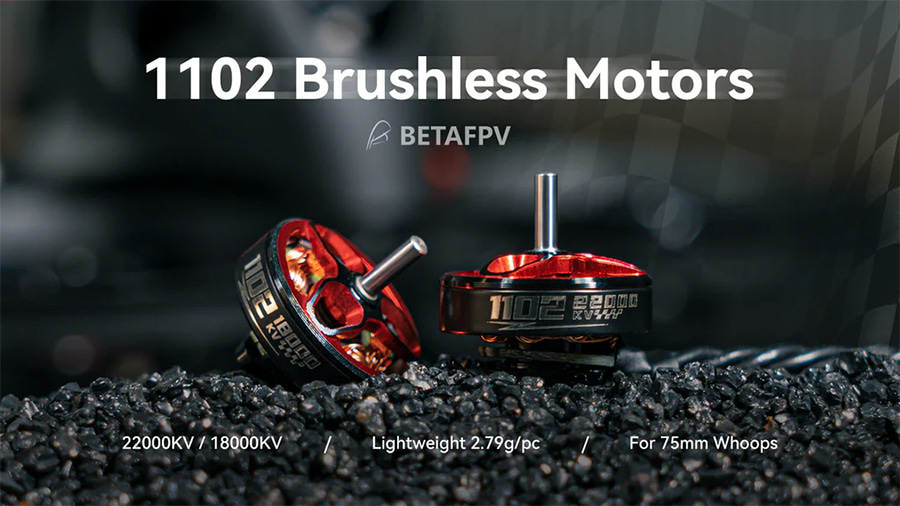

Coming with a new appearance of the black and red motor bell. New 1102 Brushless Motors have been released for stronger thrust in 1S whoop drone

with two RPM (revolutions per minute) versions 18000KV or 22000KV, which meets pilots' needs for different flying purposes.

This motor is lightweight at 2.79g/pc and is suitable for most 75mm 1S frames like Meteor75 Frame.

Bullet Points

• Adopts the technology of ball bearing, which effectively reduced the friction between the bearing surfaces, increased the duration of the motor, and improved its efficiency.

• Lead wire is soldered to the PCB, which allows you to repair it easier once disconnected.

• With exquisite workmanship, provides the most incredible power and thrust in the lightest weight of 2.79g, sturdy structure, and high-quality materials make it performs like a beast.

• Possesses dynamic balance, and crush-resistant damping bearing, which can eliminate vibration effectively.

• The classical 1102 18000KV brushless motors have 37mm/50mm cable length versions. 1102 18000KV motors have a good performance in efficiency

and the 22000KV version with higher KV value can provide more thrust for aggressive indoor FPV racing.

Whether the classical 1102 18000KV or the new 18000KV version, they have the same performance.

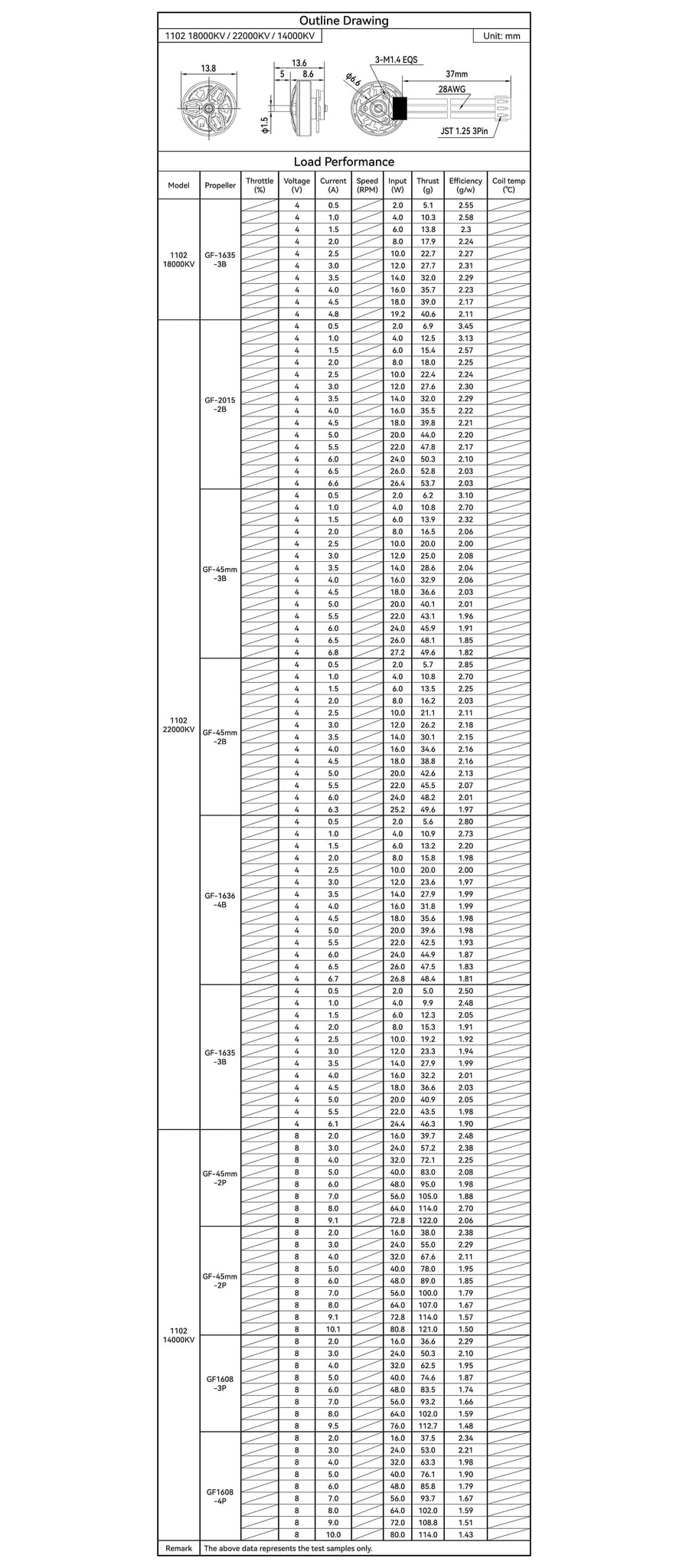

Specifications

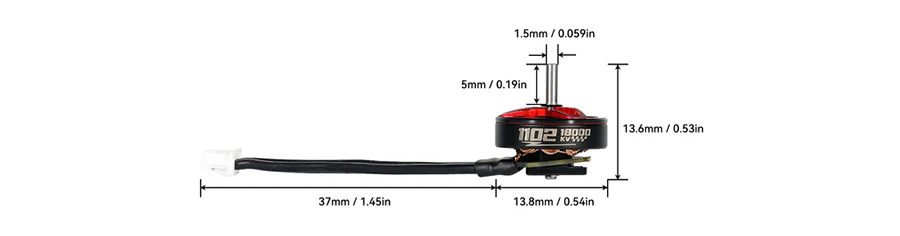

Height: 15.2mm/13.6mm (2022 version)

Weight: 2.95g/pc (18000KV) / 2.79g/pc (22000KV)

Shaft Diameter: 1.5mm

Shaft Length: 5mm

Motor Mount Holes: 3-M1.4-φ6.6

KV (rpm/V): 18000KV/22000KV

Input Voltage: 1S Lipo

Plug and cables: Micro JST-1.25 3-pin connector with 28AWG cables

1102 18000KV or 22000KV Brushless Motors

The 1102 18000KV Brushless motors are the stock motor for Cetus Pro and Meteor75 (1S HD Digital VTX).

It features great work efficiency for flying endurance, very suitable for FPV cruising flying.

The 1102 22000KV has a higher RPM and faster response, which allows the quadcopter to take off with more punch at less throttle.

More aggressive and powerful for FPV racing. For pilots who fly 75mm whoop drones with 1102 18000KV motors, it is a good choice to upgrade motors to 22000KV.

Recommend Parts

Battery: BT2.0 450mAh 1S Battery

Frame: Meteor75 Frame

Propellers:  40mm 3-Blade Props

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Flight Controller: F4 1S 5A FC / F4 1S 12A AIO Flight Controller

Package

4 * 1102 22000KV Brushless Motors

1 * Pack of M1.4*4 Screws
