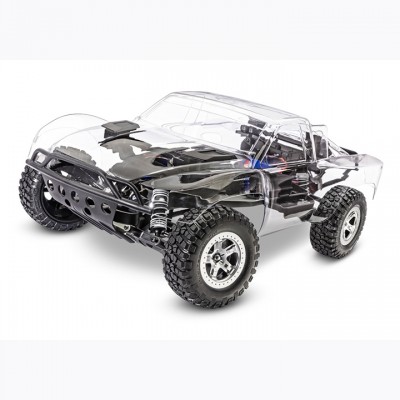

[Traxxas] CB58314-4 R5 1/10 Slash® 2WD Brushless Unassembled Kit BL-2s Brushless -충전기 배터리 미포함
제품코드 : CB58314-4
현재 상품 카테고리
▶ 트랙사스 (TRAXXAS) ▶ 전동 1/10 숏코스
판매가격 : 450,000원
상품번호 : QQ100511
※문의시 상품번호를 알려주세요
재고 : 물류창고 2개있음
주문수량
[품절임박!] 현재 잔여 수량이 2개 밖에 없습니다!
위에서 옵션을 선택하세요.
바로구매
장바구니
카톡상담

장바구니에 담았습니다.
지금 확인하시겠습니까?
장바구니 보기   계속 쇼핑하기
이미지 상품명 선택
추가 옵션상품 총합계: 0원
옵션 상품을 포함하여 장바구니 담기 >



[알씨뱅크] CB58314-4 [Traxxas] CB58314-4 R5 1/10 Slash® 2WD Brushless Unassembled Kit BL-2s Brushless -충전기 배터리 미포함 1


[알씨뱅크] CB58314-4 [Traxxas] CB58314-4 R5 1/10 Slash® 2WD Brushless Unassembled Kit BL-2s Brushless -충전기 배터리 미포함 2


[알씨뱅크] CB58314-4 [Traxxas] CB58314-4 R5 1/10 Slash® 2WD Brushless Unassembled Kit BL-2s Brushless -충전기 배터리 미포함 3


[알씨뱅크] CB58314-4 [Traxxas] CB58314-4 R5 1/10 Slash® 2WD Brushless Unassembled Kit BL-2s Brushless -충전기 배터리 미포함 4



  • Clipless Short Course Body
    • Includes window masking, decals, and custom masking decals
    • Tough front and rear tube-style bumpers
    • Body reinforcements to prevent pull-through damage
    • Holds tight for intense action
    • Quick and easy removal
    • Smooth appearance with no body posts or clips
    • Scale dimensions and looks of actual short course off-road race trucks

  • Extreme Heavy Duty Upgrade Components
    • Strengthened C-hubs, axle carriers, and steering blocks
    • Extreme heavy duty driveshafts

  • BL-2s™ Waterproof Electronic Speed Control
    • Heat sink accepts accessory cooling fan
    • Three programmable drive profiles
      • Sport Mode - Forward / Brake / Reverse
      • Race Mode - Forward / Brake
      • Training Mode™ - 50% Forward / Brake / 50% Reverse
    • Traxxas EZ-Set® one-button setup
    • Thermal shutdown protection
    • Built-in two-stage low-voltage detection for LiPo batteries
    • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
    • LiPo battery packs: 2 cells (7.4 volts)

  • 3300 kV Brushless Motor
    • Integrated cooling fan
    • Low-maintenance design
    • Efficient ball bearings
    • 3300 kV

  • TQ™ 2.4 GHz Transmitter
    • Full-size 2-channel transmitter
    • All-day comfort with precise long-range control

  • Steering
    • Chassis-mounted high-torque 2075 servo
    • Dual bellcrank design with integrated servo saver

  • Suspension
    • Heavy-duty suspension arms
    • White powder-coated progressive-rate springs
    • Oil-filled Ultra Shocks™

  • Chassis
    • Extended modular composite tub design
    • Secure battery hold-down latch
    • Side nerf bars for impact resistance

  • Transmission and Driveline
    • Heavy-Duty Magnum 272™ metal-gear transmission
    • Torque-Control™ slipper clutch
    • Planetary gear differential with steel ring gear
    • External gear cover with easy clutch access

  • Wheels and Tires
    • SCT dual-profile wheels
      • 2.2″ outer diameter, 3″ inner diameter
    • Replica BFGoodrich® Mud Terrain T/A® tires

  • Hex hardware with Rust-Resistant Black Oxide Coating
  • Sealed Ball Bearings

MODEL 58314-4: 1/10 scale Slash® BL-2s™ 2WD brushless short course truck assembly kit,
TQ 2.4 GHz radio system, BL-2s™ brushless power system, clipless clear body,
and full-color step-by-step assembly manual. Requires: battery, and charger.


SLASH KIT (58314-4) SPECS
Length­22.36 inches (568 mm)
Front Track­11.65 inches (296 mm)
Rear Track­11.65 inches (296 mm)
Weight­76.2 ounces (2.16 kg)
Height (overall)­8.43 inches (214 mm)
Wheelbase­13.2 inches (335 mm)
Front Shock Length­3.45 inches (88 mm) - long
Rear Shock Length­3.98 inches (101 mm) - XX-long
Tires­BFGoodrich® Mud-Terrain T/A®
Wheels­2.2″ satin-finish
Speed Control Type­Waterproof BL-2s™ brushless
Motor (electric)­BL-2s 3300 kV brushless
Gear Ratio (internal)­2.72 (final drive: 12.58)
Differential Type­Steel composite planetary
Gear Pitch­48
Transmission­Metal gear Magnum 272™
Steering­Bellcrank
Chassis Type­Modified tub
Chassis Material­Composite Nylon
Center Ground Clearance­3.5 inches (89 mm)
Top Speed­35+ mph
Skill Level­1
Radio System­TQ™ 2.4 GHz (2-channel)
*Battery Tray Dimensions:­165 mm x 50 mm x 23 mm, 25 mm
Required Batteries­4 "AA" (transmitter), Traxxas Power
Cell Battery (7-cell NiMH or 2-cell LiPo)
*Battery expansion kit available (5827X).




BL-2s BRUSHLESS ESC SPECIFICATIONS
Input voltage:­6-7 Cells (6.0 to 8.4 volts)
Case Size:­39 mm x 59 mm x 31 mm
Weight:­3.07 ounces (87 g)
BEC Voltage:­6.0 volts
Reverse Delay:­Yes, with lockout
Low Voltage Detection (LVD):­2-Stage indicators, switchable (on or off)
Thermal Protection:­Thermal shutdown
Profile selection:­Sport Mode:
100% FWD, 100% brakes, 100% REV
Race Mode:
100% FWD, 100% brakes, no REV
Training Mode:
50% FWD, 100% brakes, 50% REV
Single-button setup:­Traxxas EZ-Set®


BL-2s BRUSHLESS MOTOR SPECIFICATIONS
Motor Type:­Sensorless brushless
Weight:­7.51 ounces (213 g)
Length:­3.15 inches (80 mm)
Diameter:­1.42 inches (36 mm)
Connector Type:­Traxxas Quick Connect Motor Plug
