상품상세설명

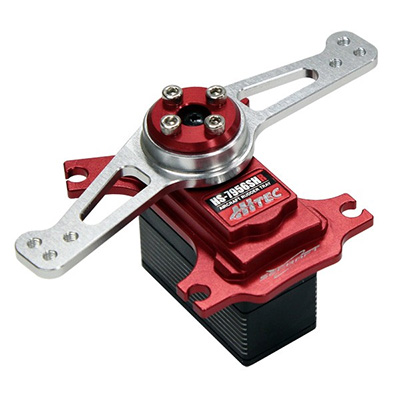

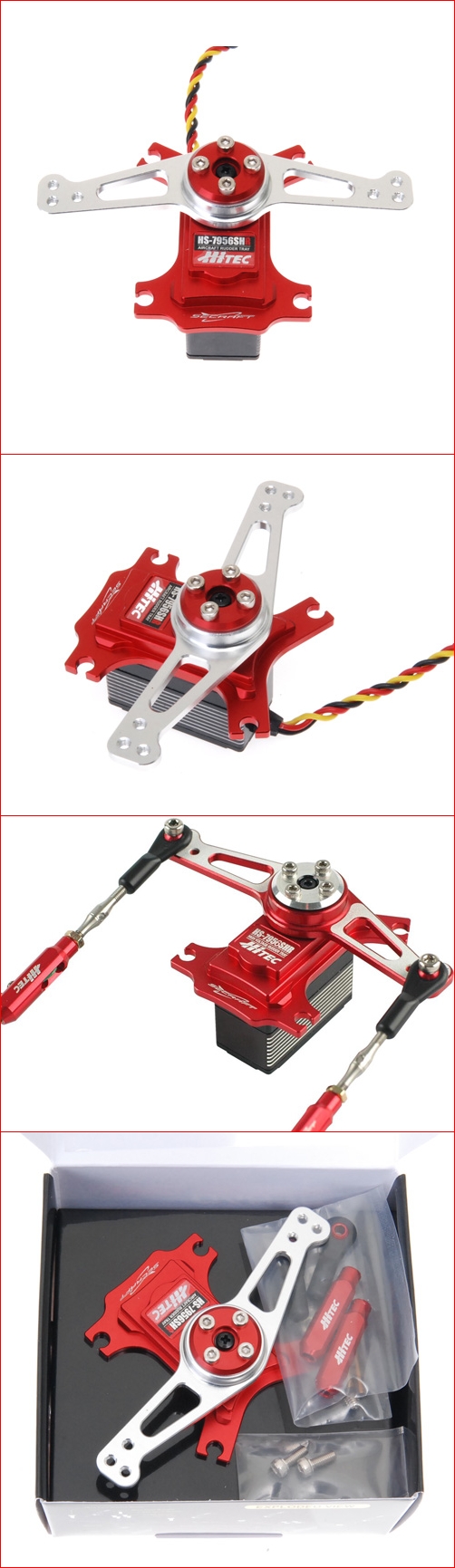

하이텍과 씨크래프트의 작품으로 HS-7956 SHR 서보가 이중 베어링 방식의 트레이 일체형으로 출시되었습니다.

Features
•G2 Digital Circuit
•HV Coreless Motor
•Large size Dual Ball Bearing Supported Output Shaft
•Steel Gear Train (MK first gear)
Programmable Features Include:

- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- Overload Protection* (default is off)

*These features are only programmable with the HFP-20 field programmer.

Specifications

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.15 / 0.12
Torque oz./in. (6.0V/7.4V): 277.74 / 340.24
Torque kg./cm. (6.0V/7.4V): 20.0 / 24.5
Size in Inches: 1.57 x 0.79 x 1.45 (40 x 20 x 37mm)
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight oz.: 2.40
Weight g.: 68
