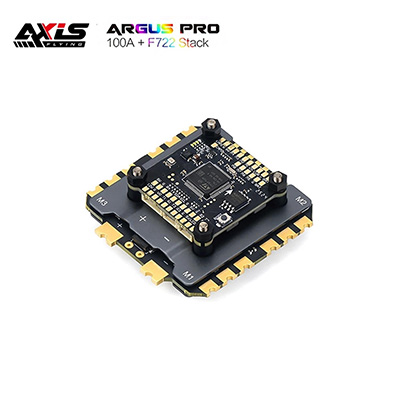

Axisflying Argus PRO F7+ECO 100A stack (32bit, 8S, BL32)

- FC와 ESC 콤보 상품입니다.

- ECO F722 FC와 Argus PRO 100A ESC입니다.

구성

하단 사진 참조

Foreword

Axisflying focuses on user experience and solves pain points for heavy‑lift FPV platforms.

This Argus Pro 100A + ECO F405/F722 Stack is a high‑power integrated flight solution with aluminum heat dissipation,

built for 15‑inch heavy‑load drones, supporting both 8‑bit & 32‑bit ESC versions.

Feature

Integrated stack: Argus Pro 100A ESC + ECO F405 / F722 Flight Controller

With heat‑dissipating aluminum parts for stable long‑time high‑load operation

ESC supports 8‑bit / 32‑bit dual versions, 4–8S high voltage input

100A continuous current, strong power for 15‑inch propeller drones

FC options

• ECO F405: STM32F405, ICM42688P gyro, 5×UART, 16M blackbox, OSD, baro

• ECO F722: STM32F722, ICM42688P gyro, 5×UART, 16M blackbox, OSD, baro

BEC 5V3A / 12V2A, sufficient for HD VTX and peripherals

Standard 30.5×30.5mm mounting, universal for heavy‑lift frames

Complete cable set for plug‑and‑play installation

Recommended Configuration

Stack: Argus Pro 100A + ECO F722 (32‑bit)

Input Voltage: 4–8S LiPo

FC: ECO F722 (STM32F722)

ESC: 100A continuous, 110A burst

Mounting: 30.5×30.5mm

Application: 15‑inch heavy‑lift FPV drones

Flight Controller: ECO F722

Firmware: SPEDIX F722

MCU: STM32 F722

Gyro: ICM42688P

Barometer: Supported

Blackbox: 16M

Input: 4–8S

BEC: 5V 3A / 12V 2A

UARTs: 5 sets

OSD: Supported

Size: 36×36×6mm

Mount: 30.5×30.5mm

Weight: 7g

ESC: Argus Pro 100A

Firmware: B‑X‑40‑Bluejay (8‑bit) / BLHeli32 (32‑bit)

Input Voltage: 4–8S LiPo

Continuous Current: 100A

Burst Current: 110A

Ammeter: 200A

Temperature Protection: Supported

Telemetry: 32‑bit supported; 8‑bit not supported

BEC: Not supported

Size: 57×56×7mm

Mount: 30.5×30.5mm

Weight: 41±2g

Package Contents

FC connection cable ×1

M3×30 screws ×4

M3 nylon nuts ×4

Capacitor ×1

Vibration damping grommets ×8

XT90 power cable ×1

Receiver cable ×1

HD VTX cable ×1

Analog camera cable ×1

Analog VTX cable ×1
