[PolyTronics] R3115-900KV S2205-2300 Race Spec' Motor(2300KV/CW)



PolyTronics사의 10in 프롭을 사용하는 대형 레이싱 드론 Mark4-10 드론에 적합한 R3115-900KV 브러시리스 모터.

입력 전압은 6S (22.2V)를 사용합니다.

색상 : Black





- The new long range 3115 brushless motor developed and designed by Tarot;

- Adopt 52H level magnets and high speed imported NSK-5x11x5mm bearings;

- Continuing to inherit the Tarot brushless motor's superior characteristics of long life,high efficiency,low power consumption,low noise,and stable control;

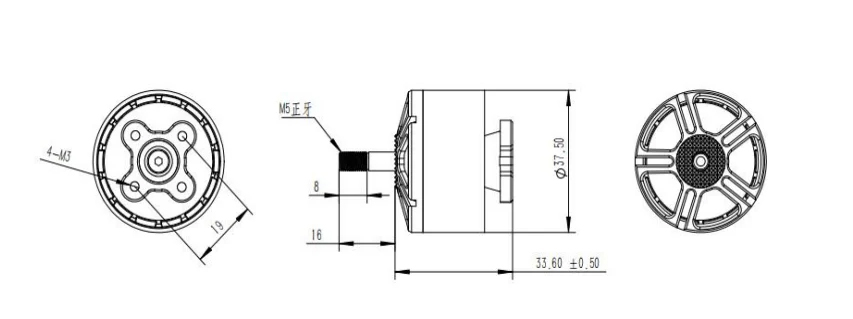

- The mounting holes are Φ19mm, which is compatible with the mainstream rack mounting of FPV drone in the current market;

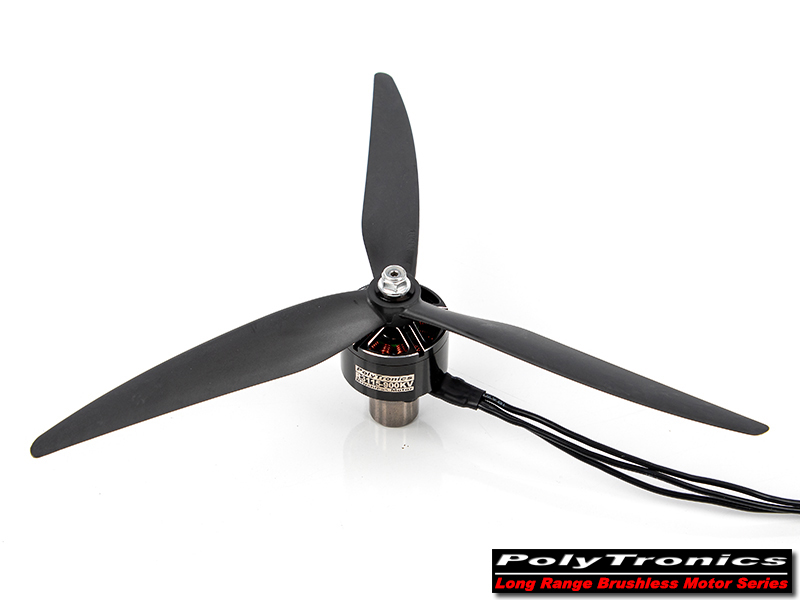

- Recommended with Tarot 1050 3-blade propeller.


- Motor KV value : 900KV

- Stator Dia : 31mm

- Stator Thickness : 15mm

- Stator Poles : 14 Pole

- No-Load Current (25.2V) : 2.5A Max

- Motor IR : 60mΩ

- Weight : 113g

- OD : 37.5 ± 0.2mm

- Motor Length : 33.6 ± 0.5mm

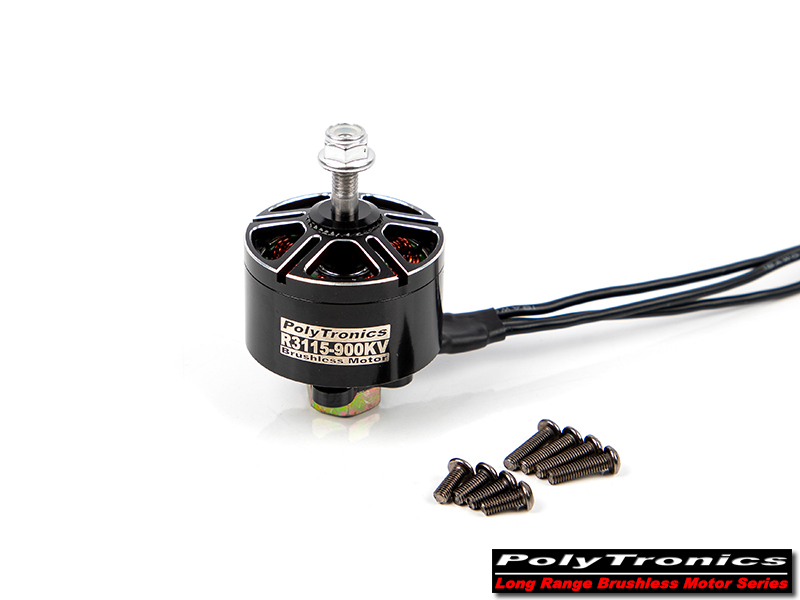

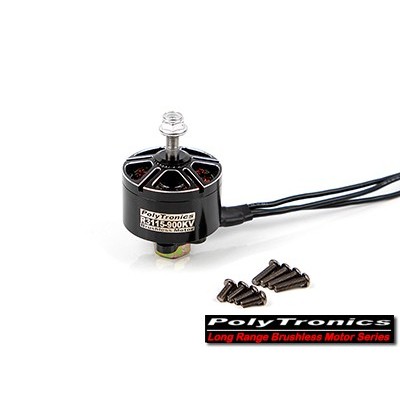

<제품 이미지>



<추력 Chart>

Motor Throttle PWM (us) Voltage Amp g/f N*m RPM Motor Temp °C Watt gf/Watt R3115-900KV

(1050 Prop)

20 1080 25.32V 0.74A 128 0.027 2984 58.6 18.7 15.2 30 1220 25.2V 3.25A 469 0.086 5293 56.9 81.9 9.8 40 1360 24.96V 8.55A 1024 0.173 7452 55.2 213.4 7.6 50 1500 24.5V 18.25A 1781 0.294 9547 54 447.1 6.1 60 1640 23.86V 32.18A 2526 0.411 11286 54 767.8 5.2 70 1780 23.12V 47.34A 3178 0.514 12599 54.9 1094.5 4.7 80 1920 22.12V 64.2A 3541 0.599 13600 57.8 1426.5 4.3 90 1950 22.1V 66.2A 3870 0.622 14000 58.6 1463 4.2 100 2000 22.1V 68A 3960 0.650 14650 59.1 1502 4





- R3115 brushless motor/900KV×1

- Cup head screw(M3*8mm)×4

- Aluminum lock nut/M5×1

- Upper Prop Spacer x 1



---
