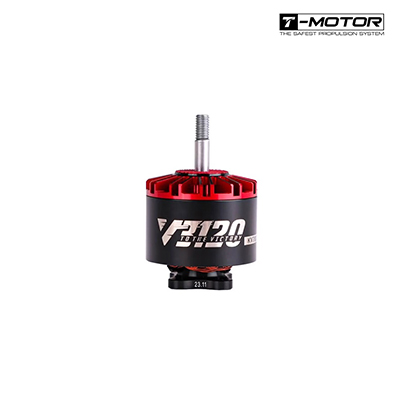

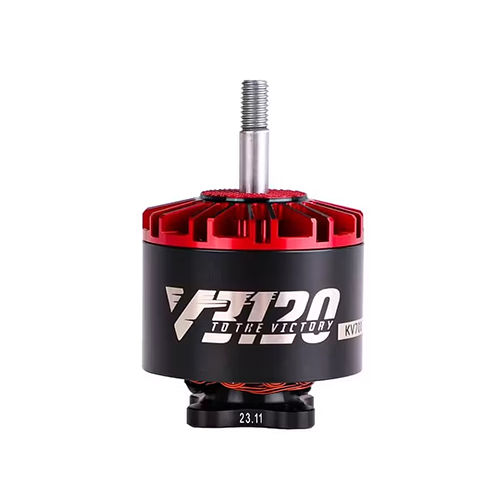

T-motor V3120 500KV 모터

NEW CINEMATIC POWER

- T-motor의 새로운 시네마틱 라인입니다.

- 10~11인치 프로펠러/12셀 배터리에 베스트 오브 베스트입니다.

구성

모터 1개

프롭 너트 1개

관련 볼트 1세트

🚀 World Record Power : The T-Motor VELOX V3120 (450KV/700KV) is a cinematic powerhouse for 8-11" drones.

Featuring imported EZO bearings and titanium alloy shaft, it delivers up to 5kg+ thrust.

Optimized for 3-12S setups and professional X4/X8 rigs. Experience the speed that powered the Guinness World Record (657km/h). Buy now!

V3120 500KV : Suitable for 6-12S 9-11 inch cinematic FPV drone

         700KV : Suitable for 4-8S 9-11 inch cinematic FPV drone

Product Highlights

🏆 World Record Pedigree : Powered the world's fastest drone to a 657km/h Guinness World Record, proving extreme reliability under high-intensity flight.

🎥 Cinematic Powerhouse : Specifically engineered for 8-11 inch X4 and X8 cinematic quads, providing smooth, stable, and powerful propulsion for heavy camera payloads.

🛠️ Premium Materials : Adopts a high-strength Titanium Alloy Shaft (lighter and stronger) and Imported EZO Bearings for maximum flight smoothness and lifespan.

⚡ Extreme 3-12S Versatility : Supports a wide voltage range from 3S up to 12S LiPo, making it the most flexible motor for various professional heavy-lift configurations.

❄️ Optimized Thermal Design : Features a Top Bell Design with Staggered Ribs to handle high-intensity flight in high temperatures, ensuring lower flight temperatures and bolder parameter adjustments.

Recommended Setup

Propellers : T-MOTOR cine10.5*5 propeller for maximum efficiency.

Stack :T-MotorV70a se 4in 1 stack

Drones : Professional 8-11 inch Cinematic/Heavy Lift Platforms

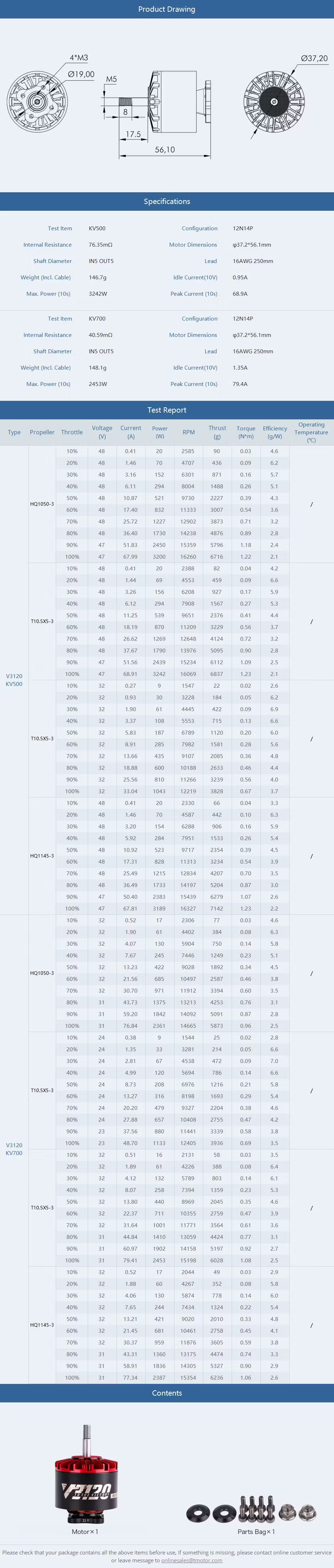

Specifications

KV Options : 500KV / 700KV

Configuration : 12N14P

Shaft Diameter: IN : 6mm / OUT: M6

Max Power : 1542W (450KV) / 2125W (700KV)

Peak Current : 33.3A (450KV) / 45.4A (700KV)

Weight : 146.4g (including cable)
