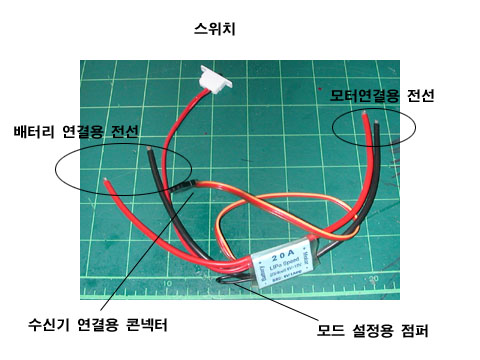

마이크로 스피드 컨트롤러 - 20A 6~18V 입력

Battery input : 2/3/4 cell (6V~18V)
Current : Normal 20A Max 30A

BEC : 5V/1Amp

Soft Brake/Soft Start

☆ wire jumped : Auto cell detected voltage cut-off mode for LiPo battery(3.0V/cell cut off)

☆ cut wire : Ni-MH battery mode(4.2V cut-off)

▶Basic operation procedures

1. TX switch ON (place TX control stick to stop position)
2. Connect receiver/battery to speed control then Switch ON
3. Move TX stick to max position (wait 1sec) then move down to stop position
4. done...(Motor will control undec TX stick)
5. If not working, Reverse on the tx reverse switch

◆ How to reset from low battery :

TX stick move to max and stop position (0.5sec-max/0.5sec-stop)
