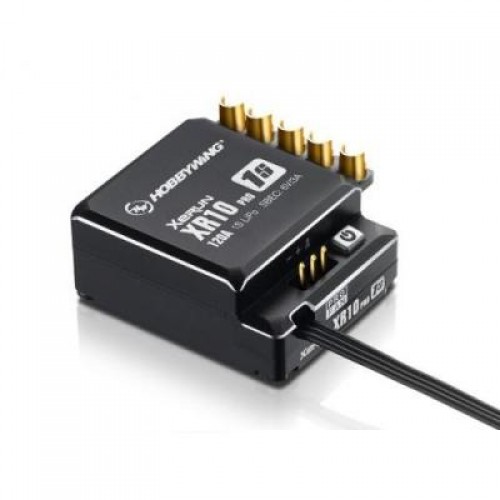

[HOBBYWING] XeRun XR10 PRO 1S 120A 자동차용 센서드 브러쉬리스 변속기 - 1셀 전용

XERUN-XR10 Pro 1S 120A - ESC

Special Design for 1/12th Scale Top Racing
Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to1/12th scale top touring car racing.

Small Size & Light Weight
Height of 15.9mm (6mm shorter than the previous V3.1 1S ESC) saves space and makes the installation convenient; weight of 35.6g (12g lighter than the previous V3.1 1S ESC) provides more weight margin whenadjusting the balance of the chassis.

Super BEC
Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.

Built-in Electronic Switch & Capacitor Module
Built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design)and capacitor module save space and make the wiring simple and neat.

Programming/Upgrading/Data
Reading Wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

Innovative Data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.

Scale - 1/12th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No

Cont./Peak Current - 120A/830A
Input Voltage - 1S Lipo/3-4 Cell NiMH
BEC Output - Swich Mode:6V@3A

Input Wires - Red-12AWG-200mm*1 Black-12AWG-200mm*1
Red-14AWG-200mm*1 Black-14AWG-200mm*1
Output Wires - Black-12AWG-200mm*3 Black-14AWG-200mm*3
Input Connectors - No
Output Connecotors - No

LCD Program Box - Supported
WiFi Module - Supported
Program Port - Separate Program Port

Firmware Upgrade - Supported

Size - 37.5x31x15.9mm
Weight - 35.6g

Motors - SL BL Motors / SD BL Motors
Vehicles - 1/12th
KV Rating/T Count - 1S LiPo:=3.0T(* ESC in Zero-timing/Blinky Mode)

Manual
