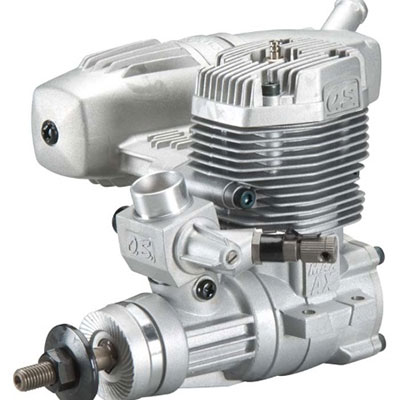

[OS ENGINE] MAX-55AX 40K 글로우 엔진 (E-3071 머플러 포함)

MAX-55AX (40K) with E-3071 · 비행기용 글로우 엔진 머플러포함
제품코드 : OS15612
상품번호 : QQ16617
카테고리1엔진/관련부품›2OS 엔진›3비행기용 엔진
판매가격 : 238,000원
상품번호 : QQ16617
※문의시 상품번호를 알려주세요
네이버페이 적립 : 4% + 멤버십 추가적립
재고 : 물류창고 5개
주문수량
[품절임박!] 현재 잔여 수량이 5개 밖에 없습니다!
위에서 옵션을 선택하세요.
바로구매
장바구니
카톡상담

장바구니에 담았습니다.
지금 확인하시겠습니까?
장바구니 보기   계속 쇼핑하기
이미지 상품명 선택
추가 옵션상품 총합계: 0원
옵션 상품을 포함하여 장바구니 담기 >

OS15612 MAX-55AX(40K) W/E-3071

Designed to combine maximum power with razor sharp throttle response in the smallest possible crankcase, the 55AX has the same mounting dimensions as the popular 46AX above, but an increase in power to 1.75PS. The dramatic AX fin styling is used for optimum cooling and the rearward angled needle on the carb makes adjustments safer. The new 40K carb and also helps increase the horsepower over the previous 40J model. Perfect for sport, scale and aerobatic models.
Specifications
Weight525g (18.52oz) with Silencer
Capacity8.93cc (.545 cu.in)
Propeller Range12x7-8, 13x6-7
Bore23mm (.906")
Stroke21.5mm (.846")
Power Output1.68hp (1.75 PS) @ 16,000rpm
Practical RPM2,000 - 17,000

  • Displacement : 545 cu in (8.93cc)
  • Bore : 906" (23mm)
  • Stroke : 846" (21.5mm)
  • Practical RPM : 2,000-17,000
  • Power Output : 1.75 PS, 1.68 HP/16,000 RPM
  • Weight w/o muffler : 14.29oz (405g)
  • Weight w/ muffler : 18.52oz (525g)
  • Recommended Props : 12x7-8, 13x6-7
  • Crankshaft thread size : 1/4-28
  • Distance/remote needle to end of crankshaft : 4.7" (119.4mm)
  • Distance from center of engine to drive hub : 2.4" (60.4mm)
  • Distance from center of engine to end of crankshaft : 3.4" (87.6mm)
  • Distance/crankshaft center to muffler exhaust outlet : 3.9" (100.5mm)
  • Height from crankcase bottom to top of cylinder head : 3.3" (85.2mm)
  • Height/crankshaft center to top of cylinder head : 2.6" (67.4mm)
  • Width including mounting tabs : 2" (50.8mm)
  • Width not including mounting tabs : 1.4" (35.6mm)
  • Width between mounting holes same side : 69" (17.5mm)
  • Width between mounting holes opposite side : 1.7" (43.2mm)
  • Diameter of muffler body : 1.5" (38.1mm)
  • Angle of muffler in relation to engine : 4°
  • High Speed Needle : 2 turns out from fully closed

  • Low Speed Needle : 3mm gap between the needle and spray bar at full throttle (looking down the neck of the carb)
