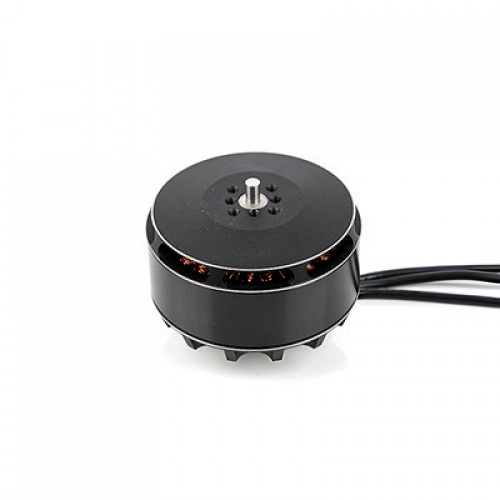

[TR] F5215(250KV) MR-Type BL Motor(20~22in) for AG Drone

TAROT F5215(250KV) BL Motor(20~22in) for AG/EDU Drone

PROJECT-10 Class!

Tarot사의 X4/X6 중형 멀티콥터용 MR Type 아웃러너 모터.

Military Level의 내구성과 장시간 체공에 최적화 된 P5010(300KV) 모터로서 18~20inch 프롭을 사용하는 타롯사의 X4 또는 X6 멀티콥터에 사용하며, 6Cell(22.2V)에 최적화된 모터입니다.

6S(22.2V) 기준으로 18x5.5 ~20x5.5 MR 프롭을 사용하면 됩니다.

International standard aviation aluminum raw materials, after Japan's high-precision CNC machining (precision 0.001mm), the use of German imports of tungsten steel cutting tool to ensure processing accuracy, each finished or semi-finished products have to undergo a rigorous quality standard test (0.01mm) to ensure that each batch Times of consistency. Through the aerodynamic layout design of the 5010 / 300kv rotor inside the use of "fan" in the form of more effective cooling of the stator, the rotor using high-precision dynamic balancing instrument debugging to the best (0.05g or less), the use of imported bearings, all hand winding. Each motor factory has been dynamic, static test, to ensure the consistency of the motor.
Use: suitable for six rotor, eight rotor, mostly professional aerial photography UAV, suitable for paddle range 20-22 inch.
Motor characteristics: high efficiency, heat fast, large pull.

- Product Type: F5215

- KV : 250KV

- Motor Size : 59x35mm

- Weight : 268g

- Idle current : 1.10A(@20V)

- Input Power : 6S(22.2V) LiPo

- Continuous Current : 40A

- Continuous Power : 1250W

- F5215 / 250kv Brushless Motor × 1
- Metal Prop Washer : 1 pcs
- M3 * 8 Hexa Screws × 4pcs
- M4 * 8 Hexa Screws x 4 pcs

- 20x5.5 Prop

- 22x5.5 Prop

<제품 이미지>

Dualsky Folding Prop 장착 이미지
