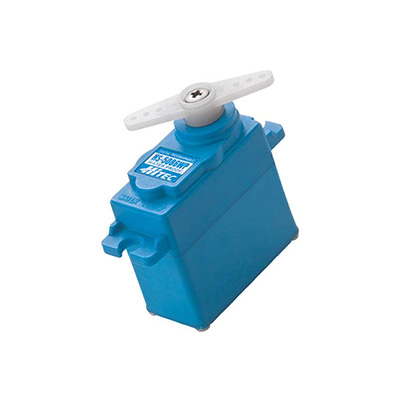

[Hitec] 하이텍 HS-5086WP (방수서보)
제품코드 : 5086WP
상품번호 : QQ17488
![[알씨뱅크] 5086WP [Hitec] 하이텍 HS-5086WP (방수서보)](/shop/data/goods/1555647369892l0.jpg)
판매가격 : 72,600원
상품번호 : QQ17488
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
상품상세설명
The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as their popular HS-85MG and the industry's first IP67 rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings.Features:
- Metal Gear with MP First Gear
- Top Ball Bearings
- 3 Pole Cored Ferrite Motor
- IP67-rated Waterproof Case
IP = International Protection Code
6 = Dust Tight, 7 = Immersion up to 1M
- Programmable Circuit
| Dimensions | 1.22” x 0.06” x 1.22” (31.0 x 15.2 x 31.0mm) |
|---|---|
| Product Weight | 1.0oz (28.5g) |
| Output Shaft Style | 24 tooth (C1) spline |
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.18sec/60° |
| No-Load Speed (6.0V) | 0.15sec/60° |
| Stall Torque (4.8V) | 42 oz/in. (3.0 kg.cm) |
| Stall Torque (6.0V) | 50 oz/in. (3.6 kg.cm) |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | No |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 2µs |
| Motor Type | 3 Pole Cored Ferrite |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Top Ball Bearing |
| Gear Type | Straight Cut Spur |
| Gear Material | Metal |
| Wire Length | 9.8" (250mm) |
| Wire Gauge | 25AWG |
| IP Rating | IP67 |
