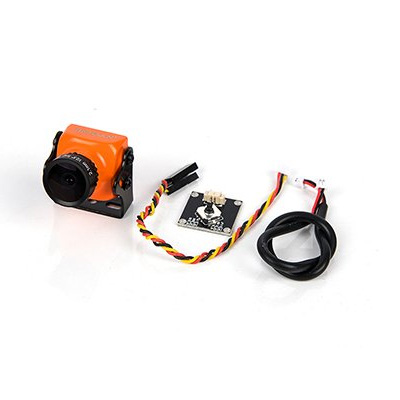

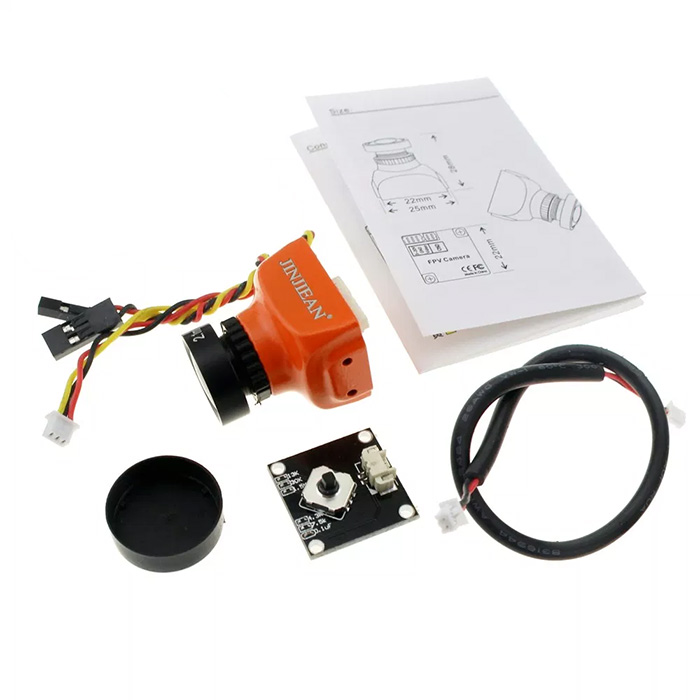

[TR] MINI A23 1500TVL FPV 카메라 (2.1mm 렌즈 / 1/3인치 SUPER HAD II CCD / D1 960H / OSD 내장)

Model

 MINI A23  FPV cameras

Lmage Sensor

1/3＇Mg SUPER HAD II CCD

Horizotal Resoulution

2000TVL

Lens

2.1mm/2.3mm

Signal System

PAL/NTSC  (OSD Internal adjustable）

S/N Ratio

＞60Db(AGC OFF)

Electronic Shutter Speed

PAL: 1/50-100.000, NTSC:1/60-100,000

Auto Gain Control(AGC)

LOW/MIDDLE/HIGH

Back light compensation(BLC)

YES

Min lllumination

0.001Lux/1.2F

WDR

D-WDR

DNR

3DNR

Day/Night

Auto/Color/B*W

Power

DC 5V-30V

Net weight

15.g

Dimensions

22mm*25mm*28mm

                                    OSD

exposure

 Brightness/exposure mode/gain

The white balance

Automatic tracking white balance

Day and night mode

Internal automatic/color mode/black and white mode

Video Settings

Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynamic

language

Chinese/English/German/Italian/Russian

Restore the factory Settings

OK

Save the exit

OK
