상품번호 : QQ23179
※문의시 상품번호를 알려주세요
상품상세설명

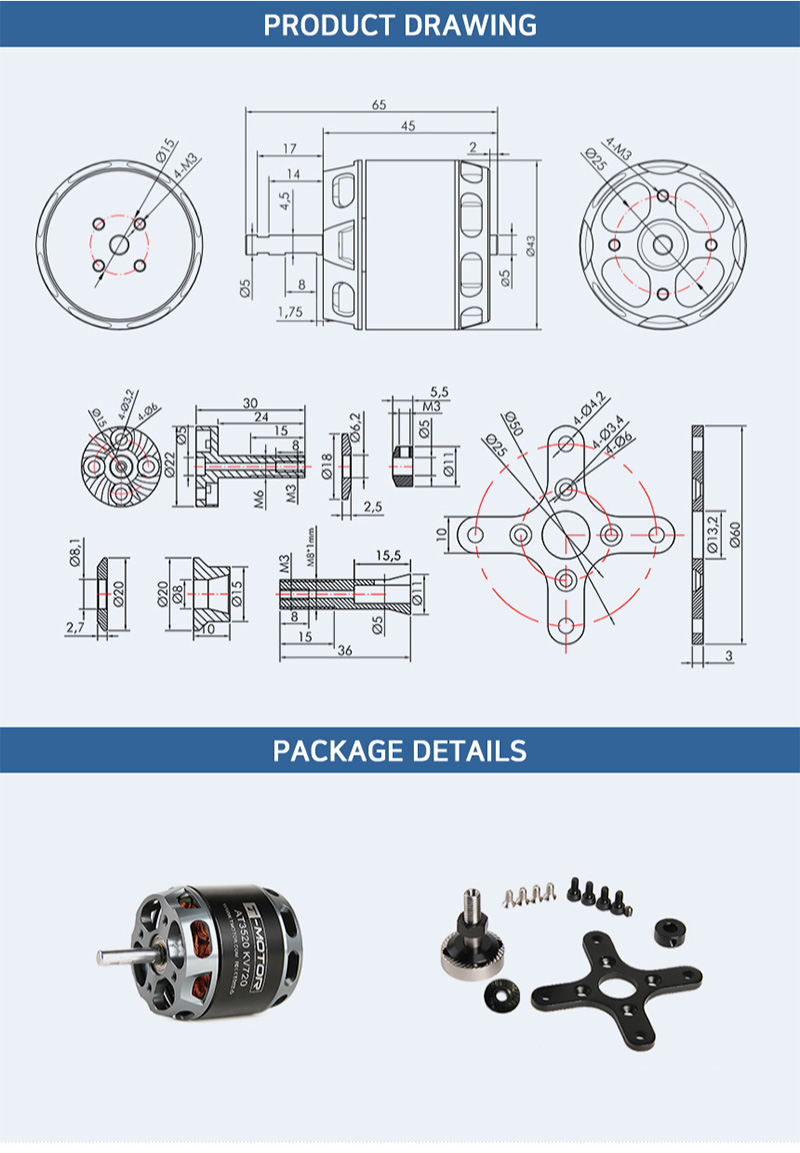

| MOTOR | | 1EA |
|---|
| Aluminum Washer(AT41Series V2.0) | φ6.1 x 16 x 2.5 mm | 1EA |
|---|
| Prop Adapter | φ22 x 30mm-M6 | 1EA |
|---|
| Prop Adapter(5/8 Collet-Style) | 11 x 36mm | 1EA |
|---|
| Washer(Non-Slip Design) | 20 x 8.1 x2.7mm | 1EA |
|---|
| Screw | M3 x 4 x 6mm / Cup-Head Set | 4EA |
|---|
| Screw | M3 x 4mm / Hexagon Set | 1EA |
|---|
| Mount Screw | M3 x 6mm | 4EA |
|---|
| Cross Style Motor Mount | 25 x 25 x 3mm | 1EA |
|---|
| Motor Base | φ20 x 10mm | 1EA |
|---|
| Nut(M6) | | 1EA |
|---|
| C-Clips | φ9 x 4 x 3.5mm | 1EA |
|---|
SPECIFICATIONS
| AT3520 Long Shaft | KV550 | KV720 | KV850 |
|---|
| Motor Dimensions | φ43 x 65mm | φ43 x 65mm | φ43 x 65mm |
|---|
| Lead | Enameled Wire 100mm | Enameled Wire 100mm | Enameled Wire 100mm |
|---|
| Shaft Diameter | IN : 5mm OUT : 5mm | IN : 5mm OUT : 5mm | IN : 5mm OUT : 5mm |
|---|
| Idle Current(10V) | 1.1A | 1.6A | 2.0A |
|---|
| Max.Power(180s) | 1100W | 1300W | 1100W |
|---|
| Weight(Incl.Cable) | 218g | 339g | 221g |
|---|
| Internal Resistance | 31㏁ | 20㏁ | 14㏁ |
|---|
| Configuration | 12N14P | 12N14P | 12N14P |
|---|
| Rated Voltage(LiPo) | 4-6S | 4-5S | 3-4S |
|---|
| Peak Current(180s) | 50A | 70A | 70A |
|---|
| Recommendation | / | / | /
|
|---|
