- 디지털 에어스피드 센서입니다.

- 아날로그보다 정확도가 높습니다.

사용하시는 FC와 호환여부를 확인하시고 구매하세요.

구성

하단 사진 참조

Specifications

Board Supply voltage: 4~6V DC

Sensor: MS4525DO

Working current: 5mA

Output: I2C (SCL & SDA)

Pressure Ranges: 1 PSI (6.89kPa)

Maximum Pressure: 20 PSI (137.9kPa)

Operating Temperature: -40°C ~ 125°C

Accuracy: ±0.25% SPAN

Red LED: power indicator

JST-GH sequence: 5V, SCL, SDA, GND

Weight: 3.5g (sensor board)

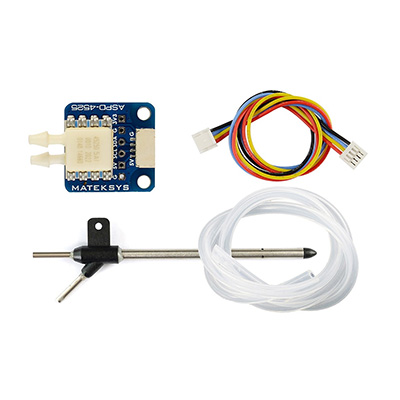

Including

1x ASPD-4525 Sensor Board.

1x JST-GH-4P to JST-GH-4P 20cm silicon wire

Pitot Tube.

Clear silicon tubing 40cm

Wiring

5V to FC 4~6V

SCL to FC I2C_SCL

SDA to FC I2C_SDA

G to FC GND
