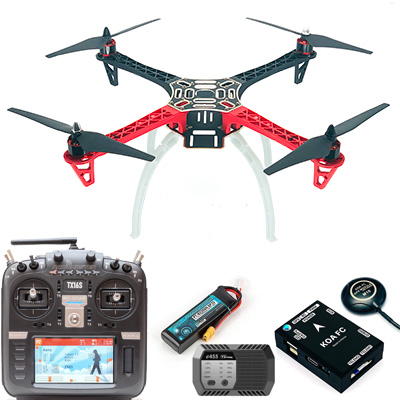

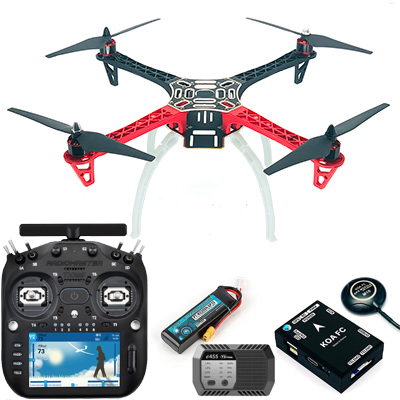

F450 ¿¬±¸/±³À°¿ë µå·Ð ÇȽºÈ£Å© + GPS, ¶óµð¿À¸¶½ºÅÍ TX16S MK3 µðÁöÅÐ 16ä³Î Á¶Á¾±â Æ÷ÇÔ Ç®¼Â - 2026 Ver.

ESC ?? ???? : https://esc-configurator.com

< ?? ?? >

- Utilizes high-performance EFM8BB2 50MHz MCU

- Capacity : 30A

- Input Voltage: 2S~5S(7.4V~18.5V)

- Continuous Current : 35A

- Burst Current(10s) : 45A

- BEC : NO(Opto)

- Programming : YES

- PCB+ power cord length: 12cm

- PCB+ signal line length: 16cm

- Dimension : 13x25x5.4mm

- Weight: 5.4g(incl' Wire and Harness)

The latest EFM8BB21F16G high speed control chip.

A 6-layer, 3-ounce copper-thick and high-quality PCB is adopted, and the layered layout of large current and small control signal is adopted to enhance the anti-jamming ability.

The gold plating process on PCB surface can effectively improve the current resistance and heat dissipation ability of electric regulation.

Integrated RGB multi-color bright LED night light, night flight is even more dazzling.

< ????(?????)? ??? ??? ?? ?? >

* ?? : ? ?? ?? ?? ?? ?? ????? MAIN OUT ??? ???? ??? ?????.

 ? ??? ?? ??? LED ? ???, DSHOT ??? ???? ?????.

BRD_SAFETY_DEFLT = 0 (?? ??? ?? OFF)

MOT_PWM_TYPE = 6 (DSHOT 600)

SERVO_BLH_AUTO = 1 (BLHeli ???? ?? ???)

SERVO1_FUNCTION = 0 (MAIN OUT ??? ??? ?)

SERVO2_FUNCTION = 0

SERVO3_FUNCTION = 0

SERVO4_FUNCTION = 0

SERVO9_FUNCTION = 33 (AUX OUT ??? ??? ?)

SERVO10_FUNCTION = 34

SERVO11_FUNCTION = 35

SERVO12_FUNCTION = 36

?? ?? ????, ???? MAIN OUT ? ?? AUX OUT ? ??? ?,

???? ??? ? ??? ESC ?? ????? ???? ??? ??? ?????.

ESC ?? ???? : https://esc-configurator.com

<?? ???>

- 1? ?? ??? ??(??, ??, ???, ??, ?? ??? ???? ??)

- 1? ?? ? ???? ??

<??? ?? ? ?? ??>

- ???? ?? ??? 18650??? 2? ????? ???.

- ???? ???? ???? ??? ??? ???? ????? ?????.

18650 ¸®Æ¬ ÀÌ¿Â ¹èÅ͸® 2000mAh º¸È£È¸·ÎÀû¿ë (65mm Ç¥ÁØ»çÀÌÁî)
5,800

¶óµð¿À¸¶½ºÅÍ TX16S¿ë 2¼¿ 7.4V 5000mAh ¹èÅ͸®
33,000

¶óµð¿À¸¶½ºÅÍ 2¼¿ 7.4V 6200mAh ¸®Æ¬Æú¸®¸Ó ¹èÅ͸®
BOXER, TX16S »ç¿ë °¡´É
59,000

RadioMaster continues to lead open-source RC innovation, building on the trusted global legacy of the TX16S series.

The TX16S MK3 elevates performance, precision, and ergonomics to new levels.

Looking for something even more refined? Check out the TX16S MK3 MAX, which features industry-leading AG02 CNC full aluminum

Hall-Effect gimbals, aluminum CNC buttons and knobs, and a carbon-look case for a truly premium experience.

TX16S MK3 — Evolution of the Legend.




Features

• High-Performance MCU : Powered by the STM32 H7 chip for maximum processing power.

• Touchscreen Display : 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

• Precision Gimbals : V6 quad-bearing Hall sensor gimbals (AG02 compatible)

• RGB Programmable Gimbal Light Rings : LUA-controlled, customizable LED gimbal lighting.

• Internal RF Module : Dual-band Gemini 2.4GHz and Sub-G 900MHz

• Smart Balance Battery Circuit : Maximizes battery efficiency and longevity for better battery life.

• Powerful Cooling System : Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.

• Digital audio : Greater sound quality and reduced interference.

• Dual Foldable Antennas : Compact and easy to store without compromising signal strength.

• Built-in Microphone : For future feature expansion.

• Automatic back light adjustment : Makes the screen easier to read indoors and out.

• Built-in Motion Sensor : Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

• Storage : Built-in flash memory with external SD card support.

• Removable shoulder switch panels : Customize your setup with modular switch panels.

Specification

• Item : TX16S MK3 Radio Controller

• Color : Black / Transparent Charcoal

• Voltage Range : 6.6 - 8.4V DC

• Working Current : 1.10A (at max RF output power)

• Radio Firmware : EdgeTX (require 3.0.0 or higher)

• Built-in RF Module : ExpressLRS 2 x LR1121

• Frequency : ISM 2.4GHz and Sub-G 900MHz

• Number of Channels : Up to 16ch

• Gimbal : V6 Hall sensor gimbals (standard)

• MicroSD Card Slot : Yes (card not included)

• Built-in Flash : Yes

• Display : 5-inch IPS touchscreen (800 X 480 resolution)

• Battery : Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)

• Upgrade Method : USB / EdgeTX Companion PC software

• Module Bay : JR-compatible module bay for additional modules

• Dimensions : 200*178*88mm

• Weight : 813g  (without battery)



Powered by the advanced STM32H7 processor, it offers lightning-fast performance, smooth operation, and instant responsiveness.

The bright 5-inch 480×800 IPS touchscreen provides a sharp, sunlight-readable interface for easy navigation and programming.

Featuring the Gemini-X dual-band ExpressLRS system with dual LR1121 transceivers, the TX16S MK3 ensures ultra-reliable,

low-latency control across both 2.4GHz and 900MHz bands, providing exceptional signal stability and link quality.

The TX16S MK3 Standard features new V6 quad-bearing Hall-Effect gimbals, using the same high-performance chipset found in the AG02 for improved precision and stability.

External adjustments for travel, centering, and tension let you fine-tune the feel exactly to your preference.

Programmable LED gimbal light rings add a new layer of customization and function, allowing pilots to assign visual indicators for modes,

warnings, or status cues while giving the radio a distinctive, personalized look.



A full-size powerhouse built around the classic, proven TX16S layout—trusted by pilots worldwide.

Every switch, slider, and potentiometer is exactly where it belongs, delivering complete control without compromise.

Modular switch panels allow personalized configurations to match any flying style.

Every aspect of the TX16S MK3 demonstrates thoughtful evolution—powerful, ergonomic, and built for pilots who expect nothing but excellence.



Package Includes

1 * TX16S MK3 Radio Controller

1 * TX16S MK3 Signature Carry Case

1 * 18650 Battery Tray

2 * Replacement Shoulder Panels

1 * Type-C Cable

1 * Screen Protector

1 * 1.5mm Hex Wrench

4 * Low Tension Gimbals Springs

2 * Gimbal Stick Set Screws

1 * Nylon Neck Strap (Lanyard)

1 * RadioMaster Sticker Set

1 * TX16S MK3 Manual

1 * Inventory Card

<?? ?? ??>

TX16S MK3 is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology.

It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers.

Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures.

Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.

Find out more about ExpressLRS here

TX16S MK3 is now compatible with mLRS!
The mLRS project offers an open-source, high-performance radio system based on LoRa technology, operating at 2.4 GHz, 915/868 MHz,

and 433 MHz/70 cm, designed to deliver a secure, reliable, and robust link under any conditions.

mLRS is designed with MAVLink and MSP optimization in mind, while also providing a transparent serial link, making it suitable for a wide range of applications.

Its design ensures the strongest possible signal integrity while maintaining a relatively high data rate, balancing performance and reliability without compromise.

Find out more about mLRS here
Visit the online mLRS Web Flasher here


Specification

Item: BETAFPV SuperD ELRS 2.4GHz/915MHz/868MHz Diversity Receiver
MCU: ESP32 PICO D4, dual SX1280(SX1281) (2.4GHz) / dual SX1276 (915MHz/868MHz)
Telemetry power: 20dBm (2.4GHz) / 17dBm (915MHz/868MHz)
Weight excluding antenna: 1.1g (2.4GHz) / 1.2g (915MHz/868MHz)
RF Frequency: 2.4GHz (ISM) / 915MHz FCC/868MHz EU
Antenna connector: IPEX MHF 1/U.FL
Input voltage: +5V DC @ “+” pad
Receiver protocol: CRSF
PCB size: 22mm x 14mm

First True Diversity Receiver with TCXO

SuperD ELRS 2.4GHz Diversity Receiver is built-in a TCXO (temperature compensated crystal oscillator), which is shared by two RF chips for a super accurate clock source.

The true diversity receiver including two RF chips and PA+LNA will generate a large amount of heat when working. With the high-quality TCXO,

it can withstand extreme temperatures with no fear of heat and cold, continuously outputting accurate frequency for long-range flight.

Click to learn more about the TCXO.

BETAFPV ExpressLRS Receivers

SuperD ELRS 2.4GHz Diversity Receiver has dual RF receiver chains with two antennas, ensuring longer and more stable flying

for FPV drones and RC airplanes. Choosing a suitable receiver to fly quadcopter or other RC models is very important. BETAFPV ExpressLRS

Receivers including ELRS Lite, Nano, Micro, and the newest SuperD, greatly fulfill pilots' requirements for FPV flying.

Diagram

The SuperD receiver 2.4GHz version diagram is shown below.

The SuperD receiver 915MHz/868MHz version diagram is shown below.

SuperD receiver RGB status indication is shown below.

The RGB light color corresponding to the packet rate is shown in the figure below.

2.4GHz:


Note: F1000 and F500 are packet rates in FLRC mode, providing faster modulation and lower latency, but at the same time having shorter

reception distance than normal Lora mode. This mode is great for racers.

D500 and D250 are packet rates in DVDA (Deja Vu Diversity Aid) mode. This mode works at the F1000 data packet rate of FLRC mode,

providing better link connection in the case of complex interference by sending the same data packet multiple times.

D500 and D250 indicate that the same data packet is sent twice and four times respectively.

915MHz/868MHz:

Note: D50 is a unique mode of ELRS Team900. Under the 200Hz refresh rate of Lora mode, the same data packet is repeatedly

sent four times, and the receiving distance is equivalent to 200Hz.

100Hz Full is a mode that realizes 16-channel full-resolution output at the 200Hz refresh rate of Lora mode, and the receiving distance is equivalent to 200Hz.

Configuration & Bind
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the SuperD diversity receiver and the flight controller board.

Take the flight controller using the Betaflight firmware as an example to introduce its wiring and port configuration.

The connection between the SuperD diversity receiver and the flight controller is shown in the figure below

Connect the flight controller to the Betaflight Configurator for basic configuration.

First, on the "Port" page, enable the flight controller serial port (take UART1 as an example) as "Serial Rx".

On the configuration page, set Receiver Mode to Serial (via UART) and Serial Receiver Provider to CRSF.

The default firmware of the SuperD diversity receiver uses the ExpressLRS V3.0.0 protocol and has no preset binding phrase.

Therefore, the firmware version of the transmitter module must be ExpressLRS V3.0.0 or later versions.

Both the receiver and transmitter module should not have any binding phrase.

• Power on and off the receiver 3 times, each step pausing 2 seconds to enter binding mode;


• When the indicator starts fast blink with orange twice, the receiving is at binding mode;


• Enter the radio or transmitter module's binding mode to bind with the receiver; if the Indicator has turned solid, it indicates that the device has been bound successfully.


Note: After binding once, the receiver will remember the autosaved binding phrase and device.

Further restarting of the device will be bound automatically without the need for a rebinding process.



The 2.4GHz default firmware is ELRS V3.0.0. If you would like to bind with a remote control or transmitter module, please upgrade it to V3.0.0 or above.

If you would like to flash the latest official ELRS firmware for the SuperD receiver, please upgrade ELRS Configurator to V1.5.2 or above.

Select the target device "BETAFPV SuperD 2.4GHz RX".

The 915MHz/868MHz default firmware is ELRS V3.3.0. The official version has not yet been released. It will be updated synchronously with the ELRS V3.3 version.
Then you can click the latest ELRS Configurator Nightly to operate. Select the target device ''BETAFPV SuperD 900MHz RX''.

Note: Firmware for 915MHz/868MHz is currently self-compiled firmware.

Package
1* SuperD 2.4GHz Diversity Receiver
2* 2.4GHz T Antenna
1* 4-Pin Header
1* 4-Pin Wire Harness
1* Instruction Manual
2* Heat Shrink Tubing
