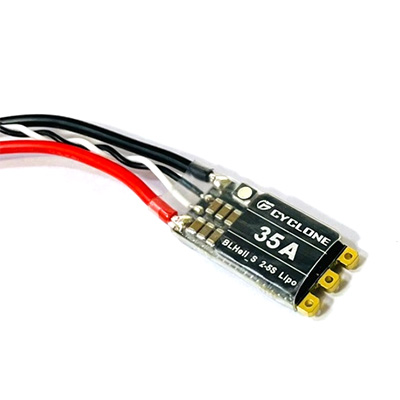

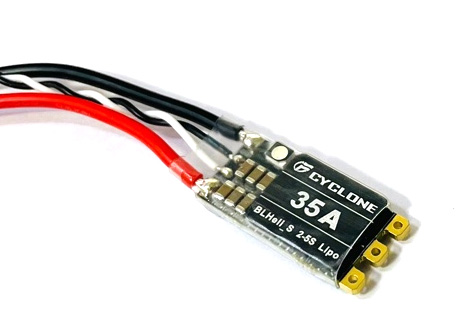

[Cyclone] Cyclone-35A BL Heli-S ESC (DShot150/300/600/One Shot)

ÃÊ ¼ÒÇü! ÃÊ °æ·®!

ÃֽŠEFM8BB21F16G Ĩ¼ÂÀ» ÀåÂøÇÑ ¼ÒÇü µå·Ð¿ë º¯¼Ó±â·Î¼­ BL Heli-S ¹× Shot 150/300/600 µðÁöÅÐ ¾²·ÎƲ ¹æ½ÄÀ» Áö¿øÇÕ´Ï´Ù.

6-·¹À̸Ó, 6¿Â½º µµÇÎµÈ PCB¸¦ »ç¿ë, ´ëÀü·ù¿¡µµ ÃæºÐÈ÷ ¹öÆ¿ ¼ö ÀÖµµ·Ï ¼³°è, ¾Æ¿ï·¯ RGB Ä÷¯ LED ĨÀÌ ÀåÂøµÇ¾î ÀÖ½À´Ï´Ù.

ÀÔ·ÂÀü¾ÐÀº ÃÖ´ë 5S (18.5V)±îÁö °¡´ÉÇÕ´Ï´Ù.

- Utilizes high-performance EFM8BB2 50MHz MCU

- Capacity : 30A

- Input Voltage: 2S~5S(7.4V~18.5V)

- Continuous Current : 30A

- Burst Current(10s) : 40A

- BEC : NO(Opto)

- Programming : YES

- PCB+ power cord length: 12cm

- PCB+ signal line length: 16cm

- Dimension : 13x25x5.4mm

- Weight: 5.4g(incl' Wire and Harness)

<Features>

The latest EFM8BB21F16G high speed control chip.
A 6-layer, 3-ounce copper-thick and high-quality PCB is adopted, and the layered layout of large current and small control signal is adopted to enhance the anti-jamming ability. The gold plating process on PCB surface can effectively improve the current resistance and heat dissipation ability of electric regulation.
Integrated RGB multi-color bright LED night light, night flight is even more dazzling.
It supports BLHeli-S and DShot 150/300/600 digital throttle. It has strong anti-jamming ability and quick response.
By default, the hardware PWM is turned on and the Damped Light hardware PWM drives the motor. The noise is low and the throttle response is smoother.
Damped Light mode, regenerative braking function, make motor deceleration more sensitive and effective, control more precise; Active continuous current technology, so that the battery recovery power, prolong the duration.

- Voltage: Support 2-5S power supply
- Working current: 35A / Continuous current 35A, peak 45A/10s
- Support protocols: dshot 125/300/600, oneshot 125
- Weight: 6g
- Size: 13*28.5
- Power cord length: 18AWG 90mm
- Signal line length: 150 mm


<Á¦Ç° À̹ÌÁö>
