상품상세설명

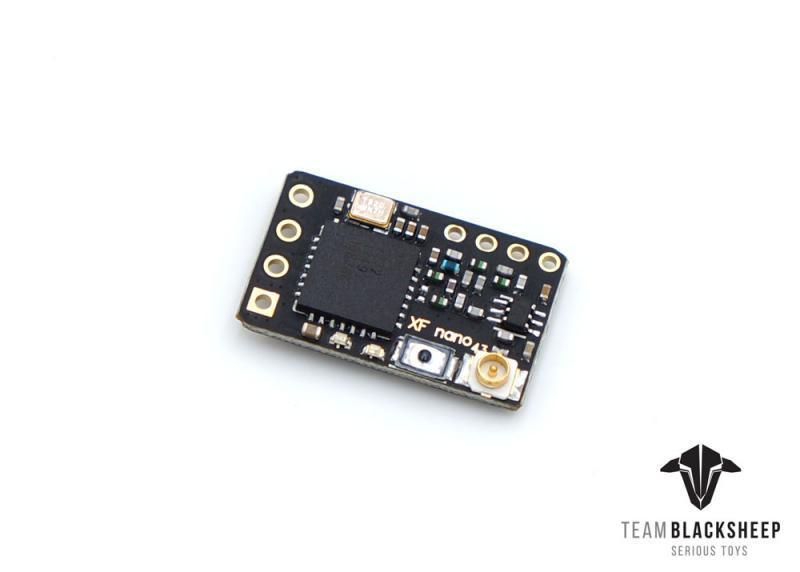

TBS CROSSFIRE NANO RX - FPV LONG RANGE DRONE RECEIVER

- TBS 크로스파이어용 나노 수신기입니다.

- 기존 마이크로V2보다 작아졌지만 기능은 동일합니다.

- Immortal-T 안테나는 옵션에서 구매하실 수 있습니다.

Agent M을 사용하는 최신 펌웨어가 올라가 있습니다.

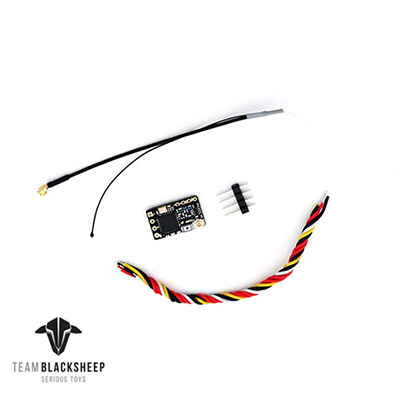

구성

수신기 1개

안테나 1개

헤더핀, 케이블 1세트

TBS is stepping up the Long Range / UHF game, with no competition in sight!

With the TBS Crossfire Nano RX we condense 2 years of engineering experience, listening to our customer requirements,

and pushing ourselves to the maximum (or in this case, the minimum!). The end result is a full range receiver,

at the smallest size of any receiver in the industry (yes, it's smaller than the XM+)

SPECIFICATIONS

Weight: 0.5g (receiver only)

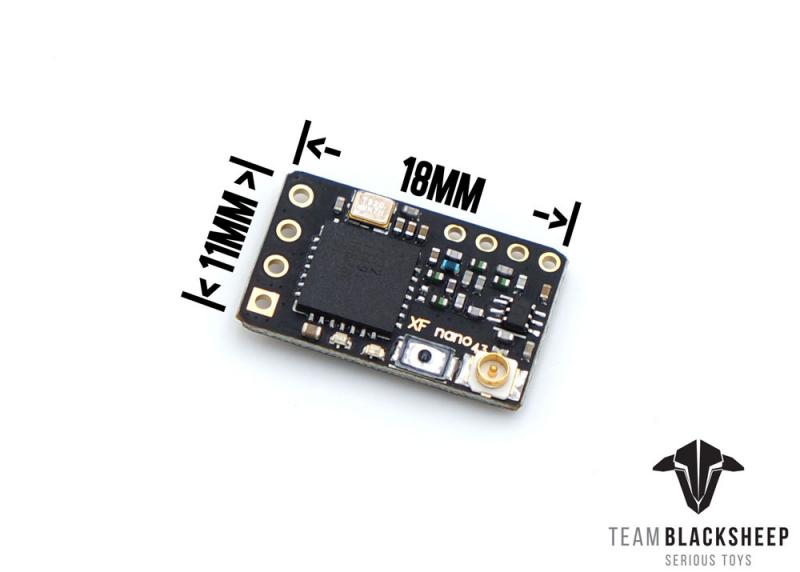

Size: 11mm x 18mm

Requires: Firmware V2.25

Input Power: +3.3V to 8.4V

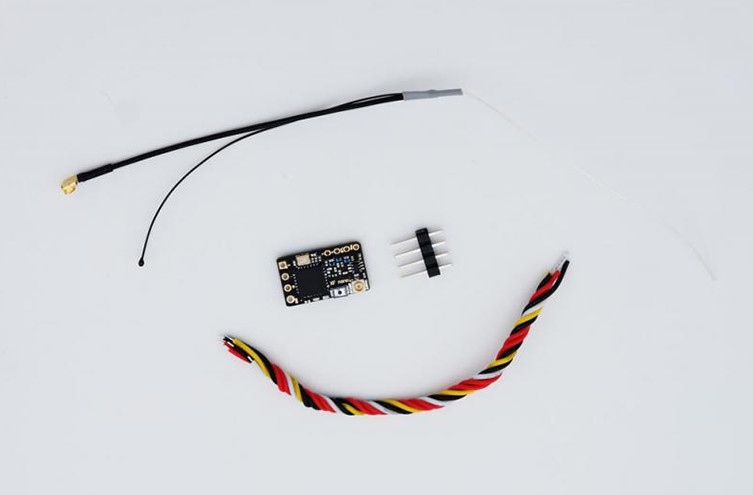

INCLUDES

1x TBS Crossfire Nano Receiver

1x TBS Crossfire Micro Receiver Antenna

1x Spare shrink tube

6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

1 x pin header 1x4



세팅방법은 아래 링크를 참고하세요.

http://cafe.naver.com/droneracer/49774
