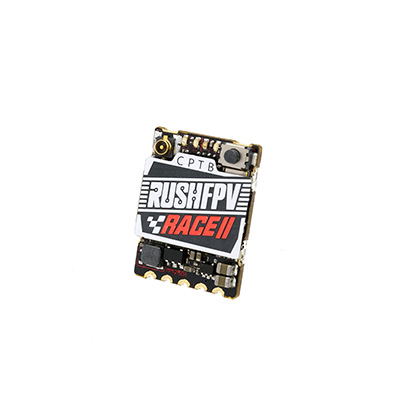

[Rush] 러쉬 Tank Race2 5.8GHz 영상송신보드 (SmartAudio V2.1)

Rush Tank Race2 5.8GHz Video Transmitter VTX 25-200mW SmartAudio V2.1

- Rush사의 Tank Race2 5.8GHz 영상송신보드입니다.

- 굉장히 작은 사이즈를 갖고있습니다.

- 무게는 1.7g입니다.

- 출력은 25mW, 100mW, 200mW에서 선택하실 수 있습니다.

- 스마트오디오V2.1을 지원합니다.

- 레이싱대회용으로 알맞습니다.

영상송신보드는 상당히 뜨거운 열을 방출합니다.(계란이 익을정도)

밀폐된 공간에 장착하시면 절대 안됩니다.

구성

영상송신보드 1개

케이블 1개

FEATURES

Lock-on: The new designed locked frequency circuit coordinates software optimization, enables transmitting frequency of TANK to keep the set point in any harsh

(high interference) environment. Allows 8 drones racing in same band, without interference.

Power LUT: Built- in high precision power lookup table which performs milliwatt power calibration for all channel, full band has it’s own unique power output.

In multi pilot flight, all pilots will benefit from this and obtain a fair and consistent signal

Silent setting: The intelligent transmit circuit of RACE will not generate any interference signal during the switching and setting of VTX. With PITMODE, you can set the VTX anytime and anywhere.

SmartAudio V2.1: Built- in SmartAudio protocol authorized by TBS. Which can be set with RGB LED by conventional double buttons, and also

access the SmartAudio protocol to set up and view the VTX information via the OSD menu

Pit mode: After entering the PITMODE, the VTX power will be reduced to a minimum. Your video feed is only visible to yourself at close range, so don’t worry about disturbing others.

SPECIFICATION

Item name : Rush Race2 VTX

Input Voltage : 5V

Channels : 37CH

Power : PIT/25/200/MAX

Dimensions : 20*15.5*2.8mm

Weight : 1.7g

Connector : u.fl

Serial Protocol : TBS SmartAudio V2.1

Welcome the Rush Race2 5.8GHz Video Transmitter now even smaller and lighter! Designed to give you the best video signal possible,

perfect for drone racing or FPV freestyle as well as fixed wing airplanes. Low profile size makes the Rush Race VTX a great choice for tight builds and weighing only 1.7g, get yours today!
