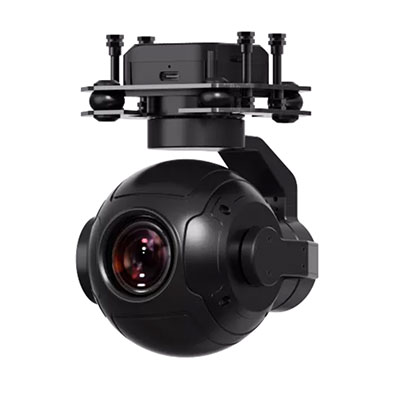

[SIYI] ZR10 2K 4MP 고배율 30배줌 QHD 디지털 3축 짐벌 카메라 / HDMI, RTSP, 이더넷, CVBS(AV) 출력 지원 (구매대행)

Overall

Model: ZR10
Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM / UART / UDP
Working Voltage: 11 to 25.2 V
Power Consumption: 3 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP4X

Dimension: 121*101*78 mm

Weight: 381 g


Gimbal

Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Mechanical Pitch Angle: -135° to +45°
Controllable Yaw Angle: -160° to +160°

Camera

Lens: 10X Optical Zoom (30X Hybrid Zoom)

Focal Length: 5.15±5% to 47.38±5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7”-inch, 4 MP effective resoultion

Aperture: F1.8 to F2.5

FOV: Diagonal 79.5°, Horizontal 71.5°

TF Recording Resolution: 2K (2560*1440) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Image Format: JPEG
Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported MicroSD Cards: MicroSD Class10, Max 128GB

Still Photography Mode: Single

Metering Mode: Evaluative metering

Mark
Features marked with "*" are in development and can be updated later by firmware.
