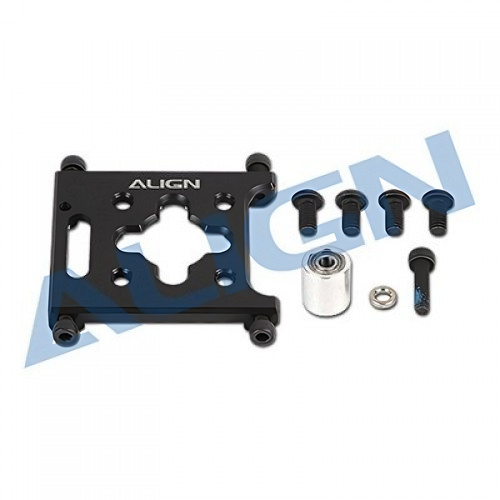

[ALIGN] TB40 Motor Mount Assembly

ALIGNRC TB40 Motor Mount Assembly

ALIGN TB40 모터 마운트 어셈블리

●Suitable for TB40.
●6061-T6 Aluminum alloy material and CNC processed.
●The motor mount has a designed belt guide pulley, which can effectively guide the belt to run stably and parallel, enhance the transmission force between the belt and the pulley. To ensure the service life of the belt.

<제품사양>

●TB40 Motor Mount x 1

●Round Socket Screw × 4(M2.5x6mm) ●Socket Half Button Head Screw × 4(M3x6mm)
●TB40 Main Belt Guide Pulley × 1(Φ6xΦ7.8x8.5mm)
●Washer × 2(Φ2.5xΦ4.4x1mm)
●Bearing 682XZZ × 2(Φ2.5xΦ6x2.6mm)
●Socket Screw × 1(M2.5x10mm)
