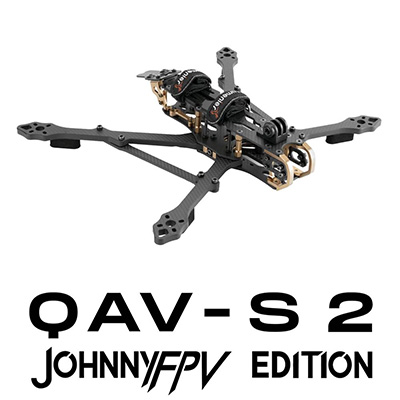

루메니어 QAV-S 2 JohnnyFPV SE 7인치 프레임킷

Lumenier QAV-S 2 JohnnyFPV SE 7” Frame Kit

- 루메니어 죠니에디션이 출시되었습니다.

- 7인치 프레임입니다.

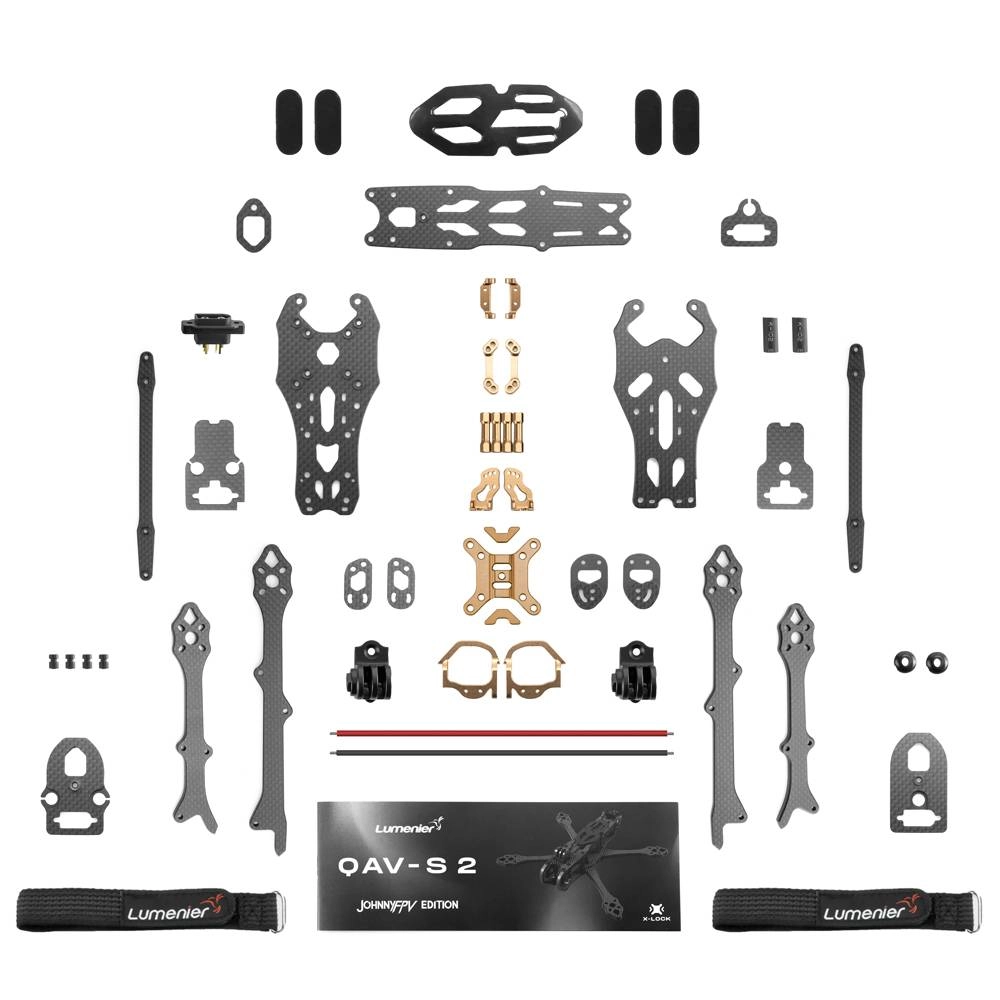

구성품

하단 사진 참조

About this product

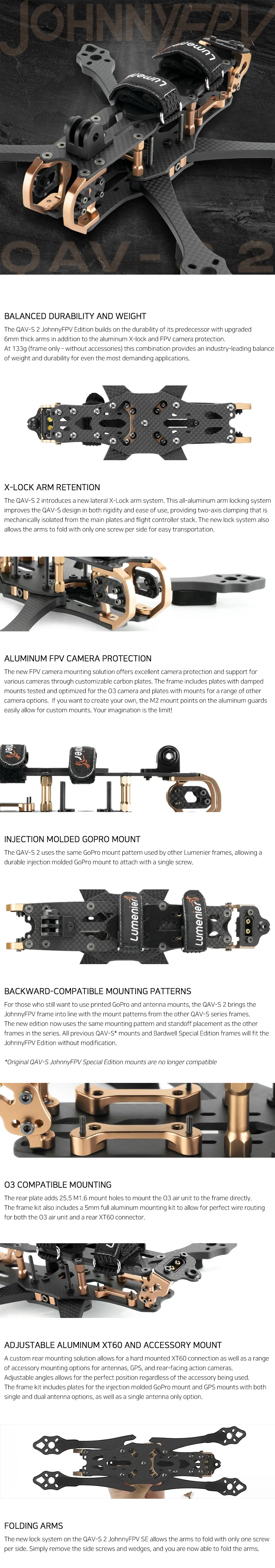

Introducing the Lumenier QAV-S 2 JohnnyFPV Special Edition frame, a cutting-edge masterpiece designed to elevate your FPV drone experience.

This frame boasts an innovative X-Lock arm retention system featuring a lateral locking mechanism that enhances rigidity and ease of use.

The arms can effortlessly fold with only one screw per side. The frame's aluminum FPV camera protection ensures superior camera support,

with customizable carbon plates compatible with various cameras, including vibration isolation options optimized for image stabilization.

With 6mm thick arms, the QAV-S 2 7" frame achieves an unparalleled balance of durability and weight at 182g (frame only).

Capture stunning footage with the injection-molded GoPro mount, compatible with the industry-standard pattern.

It maintains backward compatibility with QAV-S series mount patterns, providing flexibility for users.

The O3 compatible mounting system adds versatility, allowing direct mounting of the O3 air unit, supported by a 5mm full aluminum mounting kit for optimal wire routing.

The adjustable aluminum XT60 and accessory mount at the rear provide options for hard-mounted XT60 connection and various accessory placements, ensuring adaptability for antennas,

GPS, and rear-facing action cameras. Elevate your FPV cinematography with the Lumenier QAV-S 2 JohnnyFPV Special Edition frame – where innovation meets performance!



Features

• Made in Collaboration with expert FPV pilot JohnnyFPV

• Frame made of High-Quality Lumenier components

• Adjustable Aluminum XT60 and Accessory Mount

• Backward-compatible mounting patterns

• Aluminum FPV Camera Protection

• Balanced Durability and Weight

• Injection-Molded GoPro Mount

• DeadCat Arm Configuration

• O3 Compatible Mounting

• Arm Braces for Rigidity

• X-Lock Arm Retention

Specifications

Rear Stack Dimensions : 20x20 (potentially 30x30 with adapter)

Custom Parts : 6061 Aluminum (Bronze Gold)

Standoffs : 7075 Aluminum (Bronze Gold)

Screws : Black Zinc Steel 12.9 grade

Weight : 182g (without accessories)

Middle Stack Dimensions : 30x30

Arm : 6mm 3K Carbon Fiber

Frame Size : 220mm

IMPORTANT NOTES
The new QAV-S 2 arms will work with the original QAV-S frame, but the original QAV-S arms will not work with the new QAV-S 2 frame.
