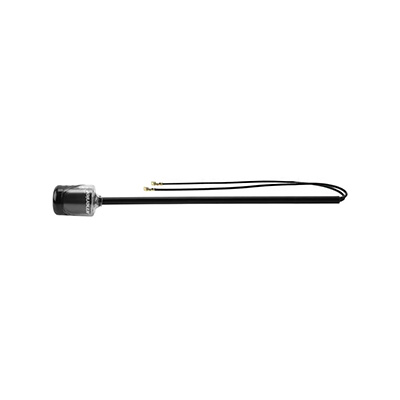

루메니어 듀얼밴드 안테나 AXII Duality HD 2.4/5.8GHz Dual-Band Antenna for DJI O3 - 길이 150mm
현재 상품 카테고리
![[알씨뱅크] 루메니어 듀얼밴드 안테나 AXII Duality HD 2.4/5.8GHz Dual-Band Antenna for DJI O3 - 길이 150mm](/shop/data/goods/1710140018888l0.jpg)
판매가격 : 28,500원
상품번호 : QQ95338
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
재입고 요청하기
상품상세설명
Lumenier AXII Duality HD 2.4/5.8GHz Dual-Band Antenna for DJI O3
- DJI O3용 듀얼밴드 안테나입니다.
- 2.4G와 5.8G를 동시에 지원합니다.
- 송수신 능력 향상과 단단한 내구성을 보여줍니다.
구성
안테나 1개 (길이 150mm)
The Lumenier AXII Duality HD is a dual-band, double antenna specifically designed for the DJI O3 Air Unit. (4 antennas in 1!)
Duality provides high-quality 2.4/5.8 GHz reception in a compact and lightweight form factor.
That's right, this antenna will work on both 2.4GHz and 5.8GHz frequencies!
Features
- High Gain, Linear Polarized (matches stock DJI antennas)
- 2.4GHz/5.8GHz Dual-Band, Double Antenna
- Multiple lengths - Long or Regular Length
- DJI O3 Digital HD Compatible
DUALITY
The Lumenier AXII Duality HD Antenna was created in partnership with world-renown antenna designer Hugo of TrueRC to bring you this Dual-Band aftermarket
The Lumenier AXII Duality HD Antenna was created in partnership with world-renown antenna designer Hugo of TrueRC to bring you this Dual-Band aftermarket
antenna designed as a direct replacement and upgrade for your stock DJI O3 antennas found on the O3 Air Unit.
The Duality antenna was made from the ground up to be a perfect match for the DJI Goggles 2, and Integra.
Duality antennas are sleek, lightweight, durable, direct stock replacement (u.fl), and all this with Lumenier quality and performance.
FOUR ANTENNAS IN ONE
The AXII Duality HD is a linear omnidirectional dual-band antenna, designed with digital HD transmission/reception in mind.
FOUR ANTENNAS IN ONE
The AXII Duality HD is a linear omnidirectional dual-band antenna, designed with digital HD transmission/reception in mind.
On top of that, it is also four antennas in one (two 5.8GHz, two 2.4GHz on a single element) being able to effectively function as both a 2.4GHz and a 5.8GHz antenna.
MULTIPLE LENGTH OPTIONS
This antenna is available in multiple lengths allowing for better positioning of the antenna on your drone, resulting in better performance, longer range, and clearer picture!
MULTIPLE LENGTH OPTIONS
This antenna is available in multiple lengths allowing for better positioning of the antenna on your drone, resulting in better performance, longer range, and clearer picture!
Specifications
Cable Length: 4cm (Regular) / 12cm (Long) (measured past plastic sleeve)
Case Material: Injection Molded Poly-Carbonate
Bandwidth: 2.4GHz-2.5GHz & 5.65GHz-5.925GHz
Dimensions: 13cm (Regular) / 27cm (Long)
Gain: 0.8dBi @2.4GHz, 2.0dBi @5.8GHz
Weight: 3.7g (Regular) / 5g (Long)
Radiation Efficiency: Up to 95%
Polarization: Linear
Connector: 2x U.FL
SWR: <=2:1
![[알씨뱅크] 루메니어 듀얼밴드 안테나 AXII Duality HD 2.4/5.8GHz Dual-Band Antenna for DJI O3 - 길이 150mm 1](https://www.susungrc.com/web/upload/NNEditor/20240311/Lumenier-AXII-Duality-HD-Dual-Band-Antenna_9.png)
