iflight AOS 3.5 V5 FPV 프레임킷

Description

Discover the future of sub 250g FPV with the AOS 3.5 V5, engineered to revolutionize your freestyle experience.

Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 3.5 V5 is the ultimate choice for drone enthusiasts.

Features

Supports up to 3.5" Props

AOS X-Cell Anti-Vibration Technology

Up to two 25.5x25.5, or 20x20 mm stacks

155° FOV no props in view

Fully DJI O3 compatible (soft mount + ND filters)

Supports 19-20mm cameras (hard or soft mounted)

Reinforced 7075 Aluminium Camera Cage

Supports Lengthwise or Toilet Tank battery mounting

⌀9 - ⌀12mm motor mounting (supports all standard 3 - 4" motors)

27x21mm M2 GoPro Mounting Pattern

32mm Rear Standoff Spacing (compatible with all AOS 3.5 antenna mounts)

Specifications

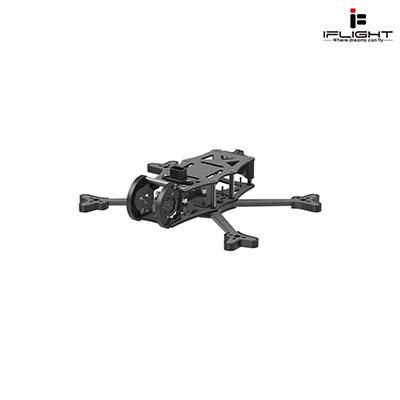

Product Name: AOS 3.5 V5 Frame Kit

Frame wheelbase: 162mm

Frame Dimension: L133*W93*H30 mm

Arm Thickness: 4mm

Top Plate Thickness: 1.5mm

Bottom Plate Thickness: 1.5mm

Upper Plate Thickness: 2mm

Max Flight Stack Height: 20mm

Max VTX Height: 20mm

Motor Mounting: 9x9-φ2mm/12x12-φ2mm

Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm

VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm

Weight: 68g

Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX

Packing List

1 x AOS 3.5 V5 Frame Kit

1 x TPU Parts

1 x Screw Bag

2 x Battery Strap

2 x Battery pads
