[BETAFPV] Pavo25 V2 반조립버전(ELRS, 신형모터)

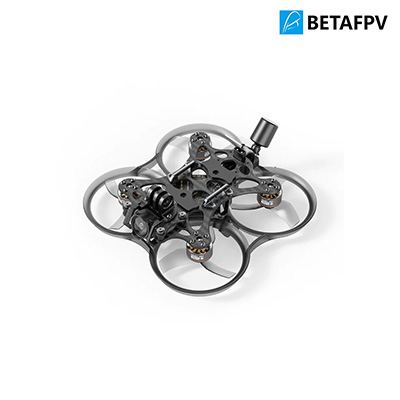

BETAFPV Pavo25 V2 Brushless Whoop Quadcopter

- 반조립 버전(ELRS)

- 2.5인치 프로펠러

- 4셀 650~850mAh(미포함)

신형 LAVA 1506-4200KV 모터가 포함됩니다.

DJI O3 등 VTX와 카메라는 포함되지 않습니다.

구성품

하단 사진 참조

Note: The Camera and HD Digital VTX(DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link, and Analog camera)

are not included in all packages. you need to buy them separately.

Bullet Point

- Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25's inability to accommodate O3 compatibility.

-  The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration

   characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.

-  Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.

-  The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.

-  It offers exceptional mounting capabilities and supports not only DJI O3, Walksnail, and HD VTX installations but also works seamlessly with lightweight cameras such as Naked GoPro 12, DJI Action 2, and InstaGo 3.

-  F722 35A AIO Brushless Flight Controller comes with an F722 chip this board provides a great performance capability and high processing speed of up to 128k PWM frequency,

-  The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.



Camera & VTX System

The Pavo25 V2, as a Cinewhoop, boasts compatibility with a wide range of FPV cameras and HD VTX systems, making it highly versatile.

It offers exceptional mounting capabilities and supports not only DJI O3, Walksnail, and HD VTX installations but also works seamlessly

with lightweight cameras such as Naked GoPro 12, DJI Action 2, and InstaGo 3, thanks to the included injection-molded camera bracket.

The new shock-absorbing gimbal design is used in combination with the frame, it effectively addresses the issue of video jelly and enhances the stability of FPV cameras.

It enables the drone to capture thrilling freestyle scenes at high speeds and output professional-grade aerial footage.

Pavo25 V2 Frame Kit

Pavo25 V2 whoop duct can enhance an additional 200g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight.

Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power

port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing

the riveting design for convenient detachment of the duct.

Powerful Propulsion System

1505 4600KV Brushless Motor is designed for the 4S 2.5'' quads, with superb torque output performance. Combined with GF D63 3-Blade Propellers

1.5mm Shaft and the F722 35A AIO V2 Flight Controller, it could offer pilots easily reproduce freestyle. Easily meet competitively challenging drone

competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading

our Pavo25 V2 Brushless Whoop Quadcopter to a smoother and more stable flight level.

Flight Controller

F722 35A AIO Brushless Flight Controller comes with an F722 chip this board provides a great performance capability and high processing speed

of up to 128k PWM frequency, built-in a 16MB flash memory chip dedicated to Blackbox logging. 6 full UARTs are available on this board.

Featuring a 6-pin plug&play port, it can directly connect HD Digital VTX with NO soldering work.

With the support of up to 2~6S input voltage, this FC pushes the FPV racer to the max, providing reliable and smooth flight for drones.

Shine in Night Cruise

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm.

Pavo25 V2 Brushless Whoop Quadcopter offers the remarkable feature of controlling the onboard COB light strip via a radio transmitter.

This convenient functionality allows for flexible control of the light strip's brightness and on/off status.

Since light pollution should be eliminated when shooting videos, COB needs to be turned off.

However, COB can be turned back on when racing and freestyle, enhance the ambiance, and provide navigation indicators,

empowering pilots to seamlessly switch between various scenes anytime such as entertainment, sports, or film creation, catering to their specific needs.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera, UV, CPL, ND8, ND16, ND32, is specifically designed for the Pavo25 V2, Pavo20 and Pavo Pico Brushless Whoop Quadcopter.

Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens.

With this feature, you can achieve slower shutter speeds or wider apertures when flying.

These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.





Recommend Parts

FC: F722 35A AIO V2
Motor: 1505 4600KV Brushless Motor
Propellers: Gemfan D63 3-Blade Propellers 1.5mm Shaft
Battery: LAVA Series 4S 850mAh LiPo Battery
Battery Strap: Pavo Series Battery Strap(2PCS)
Filter: BETAFPV ND Filter for DJI O3 Camera
VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

Package

1 * Pavo25 V2 Brushless Whoop Quadcopter
1 * COB Light Strip Accessory Pack
4 * GF D63 3-Blade Props 1.5mm Shaft(Transparent Gray)
1 * Gopro Mount
1 * Camera Mount (Left)
1 * Camera Mount (Right)
4 * M1.6 * 8 Hex Flat Head Screw
4 * M2 * 3 Hex Flat Head Screw
4 * M2 * 8 Hex Flat Head Screw
4 * M2 * 4 Hex Button Head Screw
2 * M2 * 5 Hex Button Head Screw
2 * M2 * 8 Hex Button Head Screw
1 * M5 * 18 Hex Button Head Screw
1 * M5 * 5 Anti-loosening Nut
1 * H1.27 Hexagon Wrench
1 * Service Card
1 * Frame Instruction Manual
1 * Flight Controller Instruction Manual

Note: The Camera and HD Digital VTX(DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link,

and Analog camera) are not included in all packages. you need to buy them separately.
