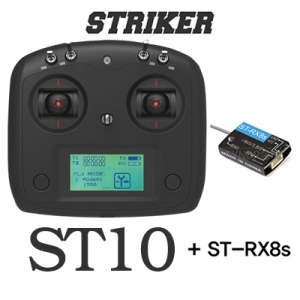

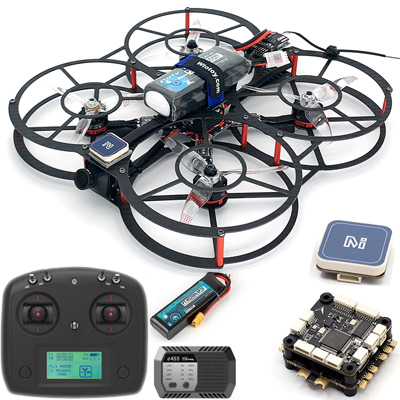

[3Max] BP5 안전 덕트 범퍼 가드 5인치 드론 + 픽스호크 + GPS + ST10 조종기 포함 풀셋 (예약판매)

[RTS] RS2205-2300 Race Spec' Motor(2300KV/CW)

현존 최고의 출력 특성을 자랑하는 RTS사의 레이싱 드론용 RS2205 컴피티션 파워 시스템!

일반적인 저가형 P-Type 네오디움이 아닌 N-Type(N52) 네오디움 자석을 채용, 아울러 일본산 MineBee(NMB) 베어링이 기본사양으로 탑재, 또한 하드한 추락에도 휘지 않고 버틸 수 있도록 고주파 열처리된 Hollow(중공) 방식의 탄소강 샤프트를 채용!

BM5045 프롭과 조합시 최대 모터당 1.1Kg이라는 극악 파워(?)를 뿜어내는 괴물 모터입니다.

정피치 모터(CW) 모터 1개 구성입니다.

※ 주의 : 모터에는 CCW 로 표기되어 있으나, 실제로 프롭 어댑터가 은색인 정방향(CW) 제품입니다.

혼동을 방지하기 위해 알씨뱅크에서는 정방향(CW)으로 표기하고 있습니다.

RTS RS2205 Race Spec Motors ;

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This “cool” feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.

Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.

Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.

Key Features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

Windings made from copper of high purity



- Model: RS2205

- KV: 2300kv

- Weight: Approx. 30g with wires

- Wire AWG: 20AWG

- Stator Diameter: 22mm

- Stator Height: 5mm

- Shaft Diameter: 3mm

- Configuration: 12N14P

- Motor Diameter: 27.9mm

- Motor Height: 31.7mm

- Prop Adapter Shaft Thread: M5

- Input voltage: 3S-4S (12.6 - 16.8v)

- KV2300 With HQ5045 BN Max.thrust:1024g


[RTS] RS2205-2300 Race Spec' Motor(2300KV/CCW)

현존 최고의 출력 특성을 자랑하는 RTS사의 레이싱 드론용 RS2205 컴피티션 파워 시스템!

일반적인 저가형 P-Type 네오디움이 아닌 N-Type(N52) 네오디움 자석을 채용, 아울러 일본산 MineBee(NMB) 베어링이 기본사양으로 탑재, 또한 하드한 추락에도 휘지 않고 버틸 수 있도록 고주파 열처리된 Hollow(중공) 방식의 탄소강 샤프트를 채용!

BM5045 프롭과 조합시 최대 모터당 1.1Kg이라는 극악 파워(?)를 뿜어내는 괴물 모터입니다.

역피치 모터(CCW) 모터 1개 구성입니다.

※ 주의 : 모터에는 CW 로 표기되어 있으나, 실제로 프롭 어댑터가 검정색인 역방향(CCW) 제품입니다.

혼동을 방지하기 위해 알씨뱅크에서는 역방향(CCW)으로 표기하고 있습니다.

RTS RS2205 Race Spec Motors ;

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This “cool” feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.

Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.

Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.

Key Features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

Windings made from copper of high purity



- Model: RS2205

- KV: 2300kv

- Weight: Approx. 30g with wires

- Wire AWG: 20AWG

- Stator Diameter: 22mm

- Stator Height: 5mm

- Shaft Diameter: 3mm

- Configuration: 12N14P

- Motor Diameter: 27.9mm

- Motor Height: 31.7mm

- Prop Adapter Shaft Thread: M5

- Input voltage: 3S-4S (12.6 - 16.8v)

- KV2300 With HQ5045 BN Max.thrust:1024g


Poly-Tronics 7th Generation 2,200mAh (11.1V, 3S1P, 35C+/JST-XT) - Slim Line

7세대 리튬 폴리머 전지 Poly-Tronics UFW Series!

새롭게 진화한 Poly-Tronics Evolution-7 Series는 독자적인 Hybrid RS Construction Technology^TM를 이용, 고품질 Substrate 및 엄격한 ISO9001 QC를 통해 엄선된 Cell들 중 IR(Internal Resistance)값이 동일한 Cell 만을 선별, Matched Pack 사양으로 제조가 됩니다.
