BETAFPV LAVA Series 1104 7200KVKV 모터 (1pcs)

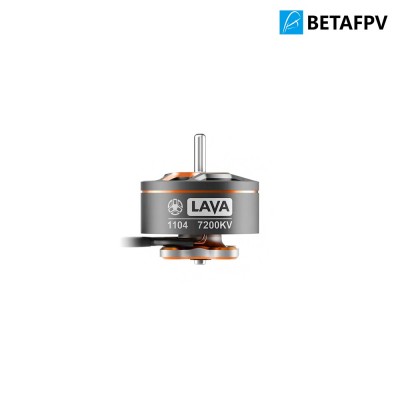

BETAFPV LAVA Series 1104 7200KV Brushless Motor (24mm)

- Pavo20 PRO용 순정 모터입니다.

구성

모터 1개

LAVA Series 1104 | 7200KV Brushless Motors is designed for the 3S 2.2'' quads, with smoother torque output performance.

Combined with the lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft) and the F4 2-3S 20A AIO FC V1, it could enable

pilots to swift, agile, and smooth freestyle. Ensuring enough creative space for cinewhoop to explore and capture the most imaginative

aerial feats, easily meet professionally shot film creation needs, leading the 3S 2.2'' quads for cinewhoop to new heights.

Bullet Point

• Unleash the power of freestyle with the LAVA Series 1104 | 7200KV motors, precision-engineered for 3S 2.2'' quads.

Experience a quantum leap in performance, taking the Pavo20 Pro Brushless Whoop Quadcopter freestyle experience to new heights.

• With the lower pitch Gemfan 2218 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight

ratio greater than 5:1, delivering a faster and more agile freestyle experience.

• Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions,

it can reach 1.9g/w, providing an efficient propulsion system for the quad.

Specification

Items :  LAVA Series 1104 | 7200KV Brushless Motors

Maximum Power : 122.5W

Maximum Current : 10.2A

Weight : 5.3g

Shaft Diameter : ø1.5mm

Shaft Length : 5mm

Wire Specification : 28AWG

Wire Length : 24mm

Motor Mounting Hole Size : 4*M2 Ø9mm

Propeller Mounting Hole Size : 4*M2 Ø5mm

Note : Only the 24mm length Version has a connector, suitable for the Pavo20 Pro.

The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(24mm).

The picture below shows the load performance of the LAVA Series 1104 | 7200KV Brushless Motors.

Recommended Parts

Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)

Quad: Pavo20 Pro Brushless Whoop Quadcopter

FC: F4 2-3S 20A AIO FC V1

Battery: LAVA Series 3S 450mAh / 550mAh Battery

Package

1 * LAVA Series 1104 | 7200KV Brushless Motors

4 * M2 * 4 Hex Flat Head Screw

4 * M2 * 5 Hex Flat Head Screw
