HD VTX 브라켓 (BETAFPV Pavo20 PRO)

카테고리1드론/픽스호크/FPV›2레이싱드론/취미용드론›3[BETAFPV] Pavo 파보 시리즈›4Pavo20 PRO
판매가격 : 8,900원
상품번호 : QQ97141
※문의시 상품번호를 알려주세요
재고 : 품절
주문수량
위에서 옵션을 선택하세요.
품절
재입고 요청하기
실시간 문의 (오전10시~오후6시)

장바구니에 담았습니다.
지금 확인하시겠습니까?
장바구니 보기   계속 쇼핑하기
이미지 상품명 선택
추가 옵션상품 총합계: 0원
옵션 상품을 포함하여 장바구니 담기 >

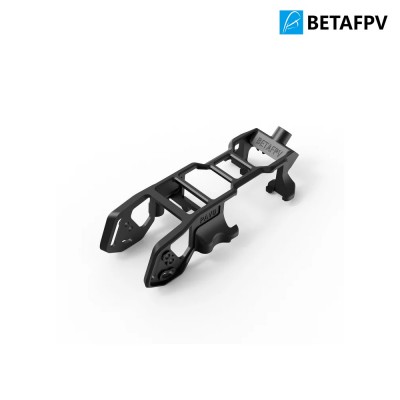

BETAFPV Pavo20 Pro Only HD VTX Bracket


- Pavo20 PRO VTX 브라켓입니다.

- 색상은 블랙입니다.


구성품

하단 사진 참조



[알씨뱅크] HD VTX 브라켓 (BETAFPV Pavo20 PRO) 1[알씨뱅크] HD VTX 브라켓 (BETAFPV Pavo20 PRO) 2Specification
Item: Pavo20 Pro Brushless Whoop Frame

Wheelbase: 93.7mm

Material: PA12/PP

Weight : 4.6g(Only HD VTX Bracket)

Color: Black

Camera: 19mm/20mm

[알씨뱅크] HD VTX 브라켓 (BETAFPV Pavo20 PRO) 3

Compatibility with Popular HD VTX

Pavo20 Pro supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability.

The Caddx Vista supports up to 720P with low latency and superior image quality performance.

The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots.

The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

[알씨뱅크] HD VTX 브라켓 (BETAFPV Pavo20 PRO) 4


Exclusively Sculpted for HD VTX

6 camera fixed holes, including 2 new cam fixed holes for the wide-angle mode shooting, minimizing the cam side panel

shadows for the wide-angle view. The cam side panel protects the lens from harm while allowing for easy vertical installation

of ND filters. No more worries about angle deviations post-thrilling flights. The antenna Holder is tailored to the contours

of the antenna's form and installation for a more convenient installation and stable holding. Experience the Pavo Series' Classic

Rubber Damper Design, bidding farewell to "jello" in your footage and delivering a consistently smooth, HD image.

The anti-vibration tips of the Pavo20 Pro are consistent with the Pavo Pico.

Please refer to Pavo Pico DJI O3 Vibration Problem.


[알씨뱅크] HD VTX 브라켓 (BETAFPV Pavo20 PRO) 5

Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, getting the frame together
hassle-free in a snap with just only 8 screws, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws,
which also enhances anti-vibration and ensuring stable and smooth HD images.

Package

Item: Pavo20 Pro Brushless Whoop Frame | Only HD VTX Bracket
1 * Pavo20 Pro VTX Bracket
1 * 20*20mm VTX Mounting Plate
2 * 5.8g Antenna
4 * M2 Nut
6 * Rubber Damper
6 * M2*10 Screws
6 * M2*4 Screws
4 * M2*15 Screws



[알씨뱅크] HD VTX 브라켓 (BETAFPV Pavo20 PRO) 6
