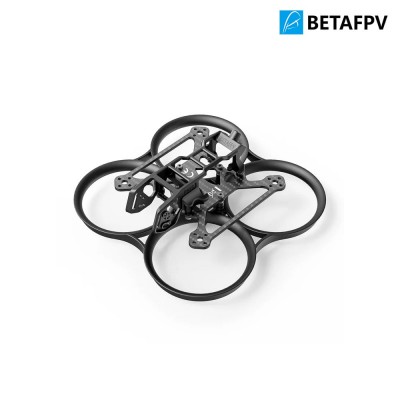

프레임 킷 (BETAFPV Pavo20 PRO)

The LAVA Series 1104 | 7200KV Brushless Motors for maximum thrust and powered by our pioneering 2.2"

Freestyle GF 2218 3-Blade Props co-developed with Gemfan. The aerodynamic frame design adds an 8-11% thrust boost,

while the LAVA 3S 550mAh 75C Battery extends flight time to 6'40''. With new 2 camera fixed holes for DJI O3 camera

wide-angle mode shooting, and the Pavo Series Classic Rubber Damper Design, ensure enough creative space for cinewhoop

to explore and capture the most imaginative aerial feats, perfecting your freestyle shooting in the sky.

Bullet Point

• Constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance.


• Employing the principles of aerodynamics, the frame boosts an extra 8~11% thrust compared with without the whoop duct,

coupled with LAVA Series 1104 Brushless Motors, enabling Pavo20 Pro up to 6'40'' flight time.

• Add 2 new cam fixed holes for the wide-angle mode shooting. The cam side panel protects the lens from effective harm, eliminating any concerns about angle deviation after intense flights while allowing for easy vertical installation of ND filters.




• Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness, and hassle-free installation with only 8 screws. The antenna holder is tailored to the contours of the antenna's form and installation, ensuring easy assembly and secure retention.




• Featured the Pavo Series' Classic Rubber Damper Design, delivers a consistently smooth, HD image.




• An open-ended battery strap slot including side-limitation slots ensures secure and stable battery placement that accommodates a wide range of batteries.


Exclusively Sculpted for HD VTX

6 camera fixed holes, including 2 new cam fixed holes for the wide-angle mode shooting, minimizing the cam side panel

shadows for the wide-angle view. The cam side panel protects the lens from harm while allowing for easy vertical installation

of ND filters. No more worries about angle deviations post-thrilling flights. The antenna Holder is tailored to the contours

of the antenna's form and installation for a more convenient installation and stable holding. Experience the Pavo Series' Classic

Rubber Damper Design, bidding farewell to "jello" in your footage and delivering a consistently smooth, HD image.

The anti-vibration tips of the Pavo20 Pro are consistent with the Pavo Pico.

Please refer to Pavo Pico DJI O3 Vibration Problem.

Recommend Parts

Quad: Pavo20 Pro Brushless Whoop Quadcopter

FC&ESC: F4 2-3S 20A AIO FC V1

Motor: LAVA Series 1104 Brushless Motors

Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)

Frame: Pavo20 Pro Brushless Whoop Frame

Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery

Filter: BETAFPV ND filter

VTX: DJI O3, Caddx Vista, RunCam Link

Package

Item: Pavo20 Pro Brushless Whoop Frame | With HD VTX Bracket

1 * Pavo20 Pro Top Plate

1 * 20*20mm VTX Mounting Plate

1 * Pavo20 Whoop Duct

1 * Pavo20 VTX Bracket

1 * 130mm Battery Strap

2 * Battery Anti-Slip Mat

2 * 5.8g Antenna

8 * M2 Nut

10 * Rubber Damper

6 * M2*10 Screws

6 * M2*4 Screws

4 * M2*14 Screws

4 * M2*15 Screws
