상품번호 : QQ97472
※문의시 상품번호를 알려주세요
상품상세설명

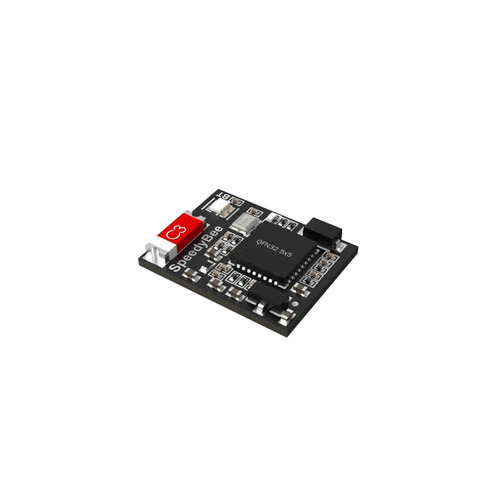

SpeedyBee BT Nano 3 Wireless FC Configuration
- 블루투스로 FC와 ESC를 세팅할수있습니다.
- 복잡한 드라어버 설치 및 OTG케이블이 필요없습니다.
- 나노사이즈로 무게가 5g 입니다.
구성
하단 사진 참조
![[알씨뱅크] SpeedyBee BT Nano 3 (FC 블루투스 연결) 1](/shop/data/editor/20206cd0dcd29554.jpg)
![[알씨뱅크] SpeedyBee BT Nano 3 (FC 블루투스 연결) 2](/shop/data/editor/bc16fe0c39711763.jpg)
Specifications
| Product Name | SpeedyBee BT Nano 3 |
| Operating Voltage | 5V |
| Working Current | MAX~87mA(5V) |
| Bluetooth Low Energy | Supports |
| WiFi | Supports. It will be turned on automatically only when upgrading the firmware of the module itself. |
| Communication Port | UART |
| Baudrate | 115200 |
| Bluetooth Automatically Turns Off | Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal. |
| BT Switch Pad | The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions |
| Power Indicator | Solid Red: Indicates that the module is powered. |
| Working Status Indicator | Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct. Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment Flashing green: Indicates that the wireless signal is being connected Solid Green: Indicates that the connection with the App has been successful |
| Size | 14*11*0.8mm |
| Weight | 5g |
![[알씨뱅크] SpeedyBee BT Nano 3 (FC 블루투스 연결)](/shop/data/goods/1734338436311l0.jpg)
