상품상세설명

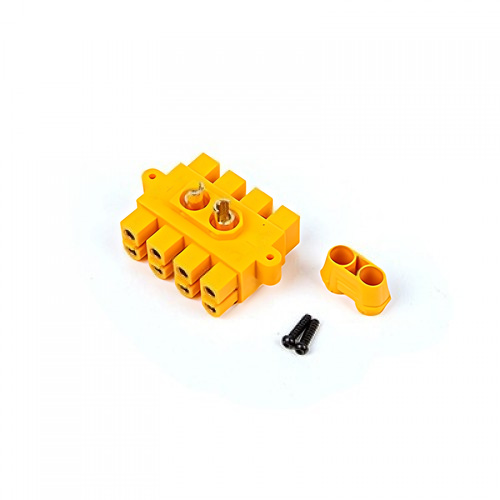

TAROT XT60 Parallel Power Distribution Hub (8Ch)

Tarot사의 XT60 파워 디스트리뷰션 허브 세트.

총 8개의 채널이 연결되며 메인 파워 입력 부분은 XT90 단자로 되어 있습니다.

<Product Description>

·One-out-eight power distribution modules from Tarot;
·Specially developed for all kinds of general-purpose drones, supporting any type of drones within 8 channels of line outputs;
·The shell adopts the injection molding integrated design;
·The internal wiring is made of solid all-copper (with gold-plated surface) in integrated construction;
·Continuous current 150A, instantaneous current up to 200A.

<Note>

1.Due to the internal solid all-copper build,will cause serious heat absorption,it is recommended to use 100W soldering iron soldering main power!

2.Before powering on for the first time, you need to test the positive and negative power supply and voltage output by yourself to ensure that it is completely normal before connecting it to the output device, the company is not responsible for any damage caused by this product!

<Product Features>

1.Internal wiring(positive/negative)each way using solid copper one-piece structure;
2.Gold-plated plug contact surface design;
3.Shell pressure molding injection molding design,beautiful and upscale;
4.No heat-shrinkable tube,sheath one-step installation in place,saving time and effort;
5.Flat welding port with a sheath with a barrier layer,both to prevent short circuit and facilitate welding;
6.UL94V-0 flame retardant grade,the safety factor is greatly enhanced;
7.Current resistance up to 200A;
8.Seamlessly compatible with XT60/XT60H docking male connector.

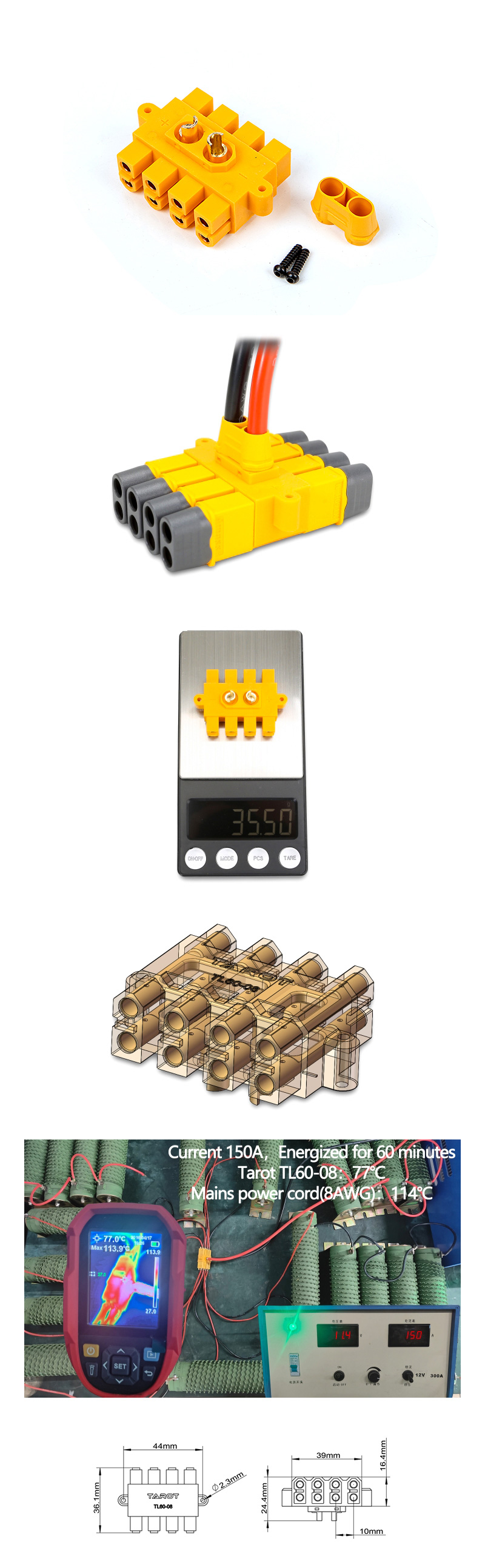

<제품 이미지>
