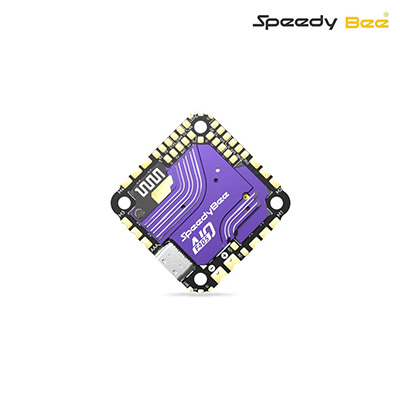

[단순개봉품] SpeedyBee F405 V4 BLS 40A 올인원 보드
AIO Stack
현재 상품 카테고리
![[알씨뱅크] [단순개봉품] SpeedyBee F405 V4 BLS 40A 올인원 보드](/shop/data/goods/1738285824000_l.jpg)
판매가격 : 65,000원
상품번호 : QQ97609
※문의시 상품번호를 알려주세요
※문의시 상품번호를 알려주세요
재입고 요청하기
상품상세설명
SpeedyBee F405 AIO 40A Bluejay 25.5x25.5 3-6S Stack
* 단순개봉으로 인해 할인하여 판매중입니다.
F405 V4 FC + 40A ESC
- SpeedyBee사의 FC와 ESC 콤보 상품입니다.
- F405 V4 FC와 BLS 40A ESC입니다.
- 자이로는 ICM42688-P을 사용합니다.
- ESC는 Blheli-S 펌웨어를 사용합니다.
구성
F405 V4 FC 1개
40A ESC 1개
![[알씨뱅크] [단순개봉품] SpeedyBee F405 V4 BLS 40A 올인원 보드 1](https://www.susungrc.com/web/upload/NNEditor/20241017/SpeedyBee-F405-AIO-40A_8.jpg)
![[알씨뱅크] [단순개봉품] SpeedyBee F405 V4 BLS 40A 올인원 보드 2](https://www.susungrc.com/web/upload/NNEditor/20241017/SpeedyBee-F405-AIO-40A_9.jpg)
![[알씨뱅크] [단순개봉품] SpeedyBee F405 V4 BLS 40A 올인원 보드 3](https://www.susungrc.com/web/upload/NNEditor/20241017/copy-1729152470-SpeedyBee-F405-AIO-40A_10.jpg)
Flight Controller
| MCU | STM32F405 |
| Gyro | ICM-42688P |
| USB Port Type | Type-C |
| Barometer | SPA06-003 |
| OSD | Supported |
| Bluetooth BLE | Supported, Bluetooth speed enhancement - 2.0 |
| Wireless Flight Controller Firmware Update | Supported (no need to press physical BOOT button) |
| Wireless Download & BlackBox Analysis | Not supported |
| DJI Air Unit Connection Method | Supports both 6-pin direct insertion and soldering |
| 6-pin DJI Sky Port Direct Insertion | Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order |
| Flash (for BlackBox) | 8MB |
| Betaflight CC Pads (Camera Parameter Adjustment) | Supported |
| Input Voltage | 3S-6S LiPo battery |
| 4V5 Output | Two 4V5 outputs; total current 1A |
| 5V BEC Output | Three 5V outputs; total current 2A; shared with 4V5 |
| 9V BEC Output | None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A |
| MOTOR | M1-M4 |
| UART | 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2]) |
| ESC Telemetry | None |
| I2C | Supported |
| LED Pads | Supported, used to control WS2812 LED lights |
| Buzzer Pads | Supported, BZ+ and BZ- pads |
| BOOT Button | Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery |
| RSSI Pads | None |
| SmartPort | Not supported |
| Supported Flight Controller Firmware | BetaFlight (Default), INAV |
| Firmware Target Name | SPEEDYBEE F405AIO |
| Mounting | 25.5 x 25.5mm, 3mm hole diameter |
| Dimensions | 33.0mm (length) x 33.0mm (width) x 8mm (height) |
| Weight | 13.6g (including CNC) |
ESC
| Input Voltage | 3-6S LiPo battery |
| Continuous Current | 40A |
| Burst Current | 45A (10s) |
| ESC Protocol | Supports DSHOT600/300; other protocols may cause severe errors, please use with caution. |
| Output Voltage | VBAT battery voltage (used to power the flight controller) |
| Current Sensor | Supported (Scale = 254, Offset = 0) |
| Firmware | Bluejay JH-40 48kHz |
