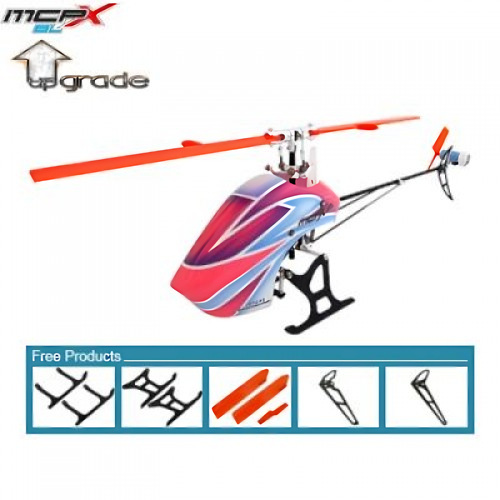

CNC DFC Head Combo Upgrade Kit (Silver) - Blade mCPXBL

1. Description:
* This Combo is full CNC combination of Carbon Fiber, Delrin and 6061 Aluminum alloy.
* 126mm Main Blade and 47mm Tail Blade to improve stability when flying 2D and 3D.
* 2.5mm Solid Carbon Tail Boom Stretch (15mm).
* All optimized for weight and durability.

1- The CNC AL DFC Head is designed to get:
+ Direct Flight Control (DFC) Rotor Head concept on the heli.
+ Performance and clear looking.
+ The linkage can be adjusted for blade tracking.

2- The Canopy is airbrush painting and fiberglass material.

3- The CNC Advanced Swashplate is tilting angle ability up to 22.5 degree and used high quality bearing to decrease slop and get more precise in control.

4- The CNC Advanced Main Frame is designed to get:
+ Compatible with stock motor and C05M, HP05, HP06... brushless motor, also you can be customized the pinion from 7T to 12T.
+ There are screws at Landing Gear Holder for supporting landing gear better.
+ Canopy pins/rods can be easy replacement.
+ There is an option the tail boom suport.

5- The CNC AL Landing Gear is designed to get:
+ Be easy change CF style 01, 02, 03.
+ Battery can adjust to balance center of gravity.
+ Special design to keep safe Baterry when flying 2D and 3D.

6- The CNC AL 8mm Tail Motor Mount w/Protection as Heatsink designed with large contact area help tail motor increase effeciency and cooler.

2. Usage(업그레이드):
- Use for Blade mCPX BL.

3. Included(포함된 부품):
1 x (SKU: mCPXBL005) CNC AL DFC Head Combo.

1 x (SKU: mCPXBL007) CNC Hardened Steel Spindle Shaft.

1 x (SKU: mCPXBL-C0102) Canopy Shape 01-Schema 02.

1 x (SKU: mCPXBL179) CNC AL Advanced Swashplate Set.

1 x (SKU: mCPXBL215) Bullet Plastic Main Blade 126mm.

1 x (SKU: mCPXBL400) Solid Carbon Main Shaft.

1 x (SKU: mSR407) CNC AL Main Shaft Collar.

1 x (SKU: mCPXBL454) CNC AL Advanced Main Frame w/Tail Boom Support Set.

1 x (SKU: mCPXBL721) CNC AL Landing Gear Style 01.

1 x (SKU: mCPXBL804-CF) 2.5mm Solid Carbon Tail Boom Stretch (15mm).

1 x (SKU: mCPXBL854-CF) CNC CF Tail Vertical Fin Set Style 01.

1 x (SKU: mCPXBL862) CNC AL 8mm Tail Motor Mount w/Protection Set.

1 x (SKU: mCPXBL974) Plastic Tail Blade 47mm.

* Free products(서비스 부품):
1 x (SKU: mCPXBL214) Plastic Main Blade 126mm.

1 x (SKU: mCPXBL731-CF) CNC CF Landing Skid Style 02 Set.

1 x (SKU: mCPXBL739-CF) CNC CF Landing Skid Style 03 Set.

1 x (SKU: mCPXBL856-CF) CNC CF Tail Vertical Fin Set Style 02.

1 x (SKU: mCPXBL858-CF) CNC CF Tail Vertical Fin Set Style 03.

4. Needed To Complete(별도로 필요한 부품):
1 x (Item: BLH3901) Flybarless BL 3-in-1 Control Unit, RX/ESC/Gyros: mCP X BL by BLADE

1 x (Item: BLH3903) Brushless Main Motor: mCP X BL by BLADE

1 x (Item: BLH3904) Brushless Tail Motor: mCP X BL by BLADE

1 x (Item: BLH3911) Feathering Spindle w/O-Rings, Bushings, Hardwware: mCP X BL by BLADE

1 x (Item: BLH3506) Main Gear: BMSR, mCP X by BLADE

1 x (Item: BLH3508) Servo Pushrod Set with ball link: 3pcs: mCP X by BLADE

3 x (Item: SPMSH2026L) 2.1-Gram Performance Linear Long Throw Servo, 38mm Lead bySpektrum

* Others: Tail Motor Wire, 2S 7.4V Battery, 2S 7.4V DC Li-Po Charger, A 6+ channel DSM2?/DSMX? transmitter is required.
