1. Description:
* Full CNC combination of Carbon Fiber, Delrin and Aluminum alloy.
* 126mm Main Blade and 47mm Tail Blade to improve stability when flying 2D and 3D.
* Auto-Rotation system with high quality Oneway Bearing + 64T 0.3M CNC Delrin Main Gear.
* 2.5mm Solid Carbon Tail Boom Stretch (15mm).
* All optimized for weight and durability.
1- The CNC Aluminum DFC Head is designed to get:
+ Direct Flight Control (DFC) Rotor Head concept on the heli.
+ Performance and clear looking.
+ The linkage can be adjusted for blade tracking.
2- The Canopy is airbrush painting and fiberglass material.
3- The CNC Aluminum Swashplate is tilting angle ability up to 22.5 degree and used high quality bearing to decrease slop and get more precise in control.
4- The CNC Aluminum Advanced Main Frame is designed to get:
+ Compatible with stock motor and C05M, HP05, HP06... brushless motor, also you can be customized the pinion from 7T to 12T.
+ There are screws at Landing Gear Holder for supporting landing gear better.
+ Canopy pins/rods can be easy replacement.
+ There is an option the tail boom suport.
5- The CNC Aluminum Landing Gear is designed to get:
+ Battery can adjust to balance center of gravity.
+ Special design to keep safe Baterry when flying 2D and 3D.
6- The CNC Aluminum 8mm Tail Motor Mount w/Protection as Heatsink designed with large contact area help tail motor increase effeciency and cooler.
2. Usage:
- Use for Blade mCPX BL.

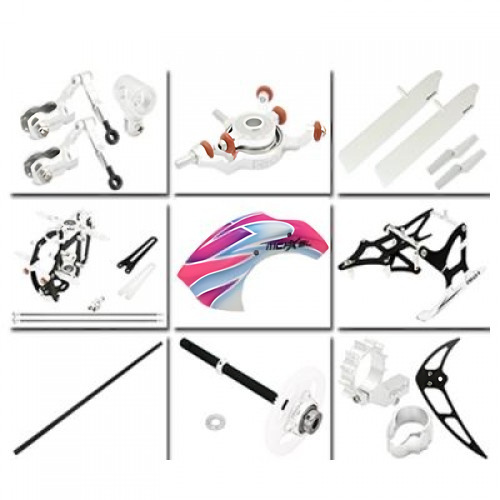

3. Included:
1 x (SKU: mCPXBL005) CNC AL DFC Head Combo ($40.99)
1 x (SKU: mCPXBL178) CNC AL Swashplate Set ($24.99)
1 x (SKU: mCPXBL215) Bullet Plastic Main Blade 126mm ($6.99)
1 x (SKU: mCPXBL304) CNC Oneway Main Gear w/Solid Carbon Main Shaft Set ($27.49)
1 x (SKU: mSR407) CNC AL Main Shaft Collar ($2.99)
1 x (SKU: mCPXBL454) CNC AL Advanced Main Frame w/Tail Boom Support Set ($61.99)
1 x (SKU: mCPXBL721) CNC AL Landing Gear Style 01 ($19.99)
1 x (SKU: mCPXBL804-CF) 2.5mm Solid Carbon Tail Boom Stretch (15mm) ($4.49)
1 x (SKU: mCPXBL858-CF) CNC CF Tail Vertical Fin Set Style 03 ($6.99)
1 x (SKU: mCPXBL862) CNC AL 8mm Tail Motor Mount w/Protection Set ($17.99)
1 x (SKU: mCPXBL974) Plastic Tail Blade 47mm ($4.99)
* GIFT:
1 x Airbrush Fiberglass Canopy.
4. Needed To Complete(별도로 필요한거):
1 x (Item: BLH3901) Flybarless BL 3-in-1 Control Unit, RX/ESC/Gyros: mCP X BL by BLADE
1 x (Item: BLH3903) Brushless Main Motor: mCP X BL by BLADE
1 x (Item: BLH3904) Brushless Tail Motor: mCP X BL by BLADE
1 x (Item: BLH3911) Feathering Spindle w/O-Rings, Bushings, Hardwware: mCP X BL by BLADE
1 x (Item: BLH3508) Servo Pushrod Set with ball link: 3pcs: mCP X by BLADE
3 x (Item: SPMSH2026L) 2.1-Gram Performance Linear Long Throw Servo, 38mm Lead bySpektrum
* Others: Tail Motor Wire, 2S 7.4V Battery, 2S 7.4V DC Li-Po Charger, A 6+ channel DSM2?/DSMX? transmitter is required.
