[Align] T-Rex600 New Tail Belt Unit(Dual Link Type) - 한정판매!

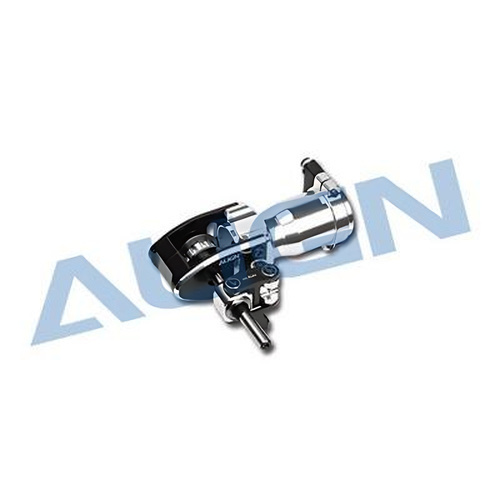

ALIGN RC T-Rex600 Tail Belt Unit (Dual Link Type)

T-Rex600용 테일 벨트 유니트.

듀얼 링크 타입 슬라이더를 탑제한 벨트용 테일 유닛 어셈블리입니다.

기존 T-Rex600 Nitro 및 ESP Belt Version 사용자들을 위해 특별히 한정 생산된 제품입니다.

●Brand new tail gear box with higher material quality and easy maintenance.
●Utilizes dual point attachment design for zero play and higher precision control feel.
●Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
●6061-T6 Aluminum alloy material and CNC processed.
●Suitable for 600 Belt class machines.


<제품 사양>


●Metal plate(L) × 1
●Metal plate(R) × 1
●Tail unit set × 1
●Metal Tail Rotor Shaft Assembly × 1
●Bearing MR105ZZ × 2(Φ5xΦ10x4mm)
●Socket button head screw × 4(M3x6mm)
●Socket screw × 1(M3x20mm)
●Vertical stabolizer mount × 1
●Socket collar screw × 2(M3x22mm)
●M3 Specialty washer × 2(Φ3xΦ8x2mm)
●I-shaped Arm × 1
●Mount Link × 1
●Bearing holder × 1(13.5x12.5x9.5mm )
●Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm)
●Tail control arm × 1
●Bearing holder × 1(Φ7x Φ8.3x3.5mm)
●Bearing F682XZZ × 6(Φ2.5xΦ7.1xΦ2.6mm)
●Bearing MR117ZZ × 2(Φ7xΦ11xΦ3mm)
●Socket button head screw × 1(M3x5mm)
●Socket button head screw × 6(M2.5x5mm)
●Slider Shaft × 1(Φ8x7x17.6)
