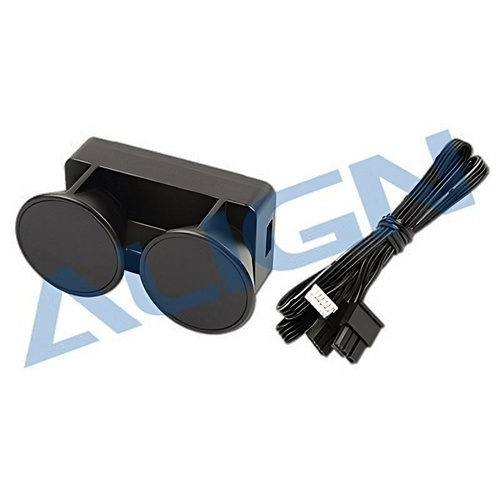

ALIGNRC E1 Obstacle Avoidance Radar

E1 Demeter 교육 및 방제 헬기용 장애물 회피용 레이더 시스템.

예약판매 상품입니다.

KC 인증번호 : R-RS-M2Z-AR1

● Suitable for ALIGN E1。
● During the work, when an obstacle (such as traffic light, trees, bushes and buildings) is detected by radar 15m away in front, the system will emit an alarm and brake to keep aircraft safe. Besides, it can turn ON/OFF the radar from APP ground station. When it's OFF, the APP will make voice alarm when radar detect an obstacle.

Importance:
The obstacle avoidance radar is just a flying assistant. Each user needs to pay 100% attention and responsible of each flights. Users must ensure the flying environment is safe, and keep crowds and obstacle away for flying safety.

<제품 사양>

● Transmission Frequency：24GHz
● Power Consumption：400mW
● Detection Range：0.5~25m(Depend on target size and material)
● Detection Angle：Horizontal 34 degree / Vertical 34 degree
● Effictive Flight Condition：
Flight Altitude over 1.5m
Flight Speed lower than 5m/s
● Start Safe Braking Distance：6m
● Safe Braking Distance：2~3M
● Approaching Direction：Forward-looking
