● 모든 PNP 제품은 발송 전 개봉하여 각 전자장치 (서보, 모터, 변속기, 리트렉트, LED) 작동 테스트 후 발송됩니다.
● 아래 내용은 KIT, ARF, PNP 의 일반적인 제품 구성이며, 정확한 구성품은 각 제품의 상세 설명을 참고하십시오.
- KIT (키트) / ARF : 기체의 프레임(껍데기)와 하드웨어(링키지 등)만 있으며, 전자 기자재는 일체 미포함
- PNP : 기체의 프레임 및 전자 기자재(모터, 변속기, 서보 등)가 함께 포함(또는 조립완료) 되어 있음. 송수신기 및 배터리 관련은 미포함.
- BNF : 기체의 프레임 및 전자 기자재(모터, 변속기, 서보, 수신기)가 조립 완료되어 있음. 조종기는 미포함이며, 특정 조종기만 사용 가능.
Key Features
4258-KV650 motor and 70A ESC
Shock absorbing metal oleo landing gear struts
Retractable tail wheel with metal trunnion
No more foam hinges! Nylon hinge material on control surfaces
Screw-in servo pockets. No more glued in servos! A servo can be replaced with 2 screws
Digital metal gear servos for maximum durability
Ball links on all control surfaces
Split flaps with an amazing amount of detail
Easy single wire quick connectors to remove the wings
Slide out battery tray for easy battery changes
Super high fidelity scale detail throughout
Needed to Complete
6+ Channel Radio System
LiPo Battery
LiPo Charger
What's in the box?

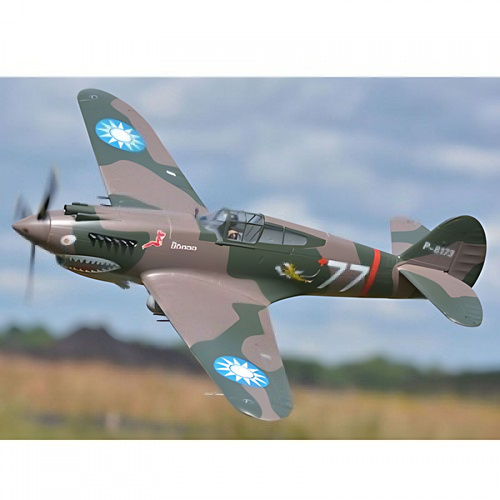

(1) P-40B Tomahawk PNP, 1400mm (Flying Tigers)
(1) User Manual
Overview
If you are a fan of military, you'll understand the glorious history of the Flying Tiger. The Flying Tiger played an important role and had a brilliant record in China during WWII. To pay homage to this classic warbird, FMS has revived it AGAIN after numerous further studies and tests.
In the real battleground, P-40s were not as devastating as P-51s. However, in the RC model world, the FMS P-40 shows extraordinary talents. The stable flying performance could rival any of the other warbirds. The new high-magnification foaming greatly lowers the flying weight. The scaled appearance allows it to be a static exhibit. The metal, shock-absorbing landing gear set could undertake severe impact and lead to a smooth landing. The separating flaps, the front and rear retract, the plastic decorative parts fully reappear on this classic warbird. Newly designed ball link control hardware replaces traditional clevises. The additional servo box makes it simpler to assemble and take apart. The 17g metal gear servo, 70A ESC, and 4258 motor ensure the superior quality of flight.
The Flying Tigers, known officially as the 1st American Volunteer Group (AVG), were a unit of the Chinese Air Force, recruited from U.S. aviators. From late 1941, the P-40B was used by the Flying Tigers. They were divided into three pursuit squadrons, the "Adam & Eves", the "Panda Bears" and the "Hell's Angels".
Compared to opposing Japanese fighters, the P-40B's strengths were that it was sturdy, well armed, faster in a dive, and possessed an excellent rate of roll. While the P-40s could not match the maneuverability of the Japanese Army air arm's Nakajima Ki-27s and Ki-43s, nor the much more famous Zero naval fighter in a slow speed turning dogfight, at higher speeds the P-40s were more than a match. AVG leader Claire Chennault trained his pilots to use the P-40's particular performance advantages. The P-40 had a higher dive speed than any Japanese fighter aircraft of the early war years, for example, and could be used to exploit so-called "boom-and-zoom" tactics. The AVG was highly successful, and its feats were widely published by an active cadre of international journalists to boost sagging public morale at home. According to their official records, in just 6 1/2 months, the Flying Tigers destroyed 115 enemy aircraft for the loss of just four of their own in air-to-air combat.
Aileron:
Yes
Approximate Assembly Time:
1-3 Hours
Approximate Flight Time:
6 minutes
Battery:
4S LiPo 14.8V 3300mAh 35C
CG (Center of Gravity):
2.75 - 2.9 in (70-75mm) from leading edge
Completion Level:
Plug-N-Play
Elevator:
Yes
Flaps:
Yes
Flying Weight:
Approximately 5.5 lb (2500g)
Length:
46.9 in (1192mm)
Material:
Durable EPO
Minimum Required Radio:
6 Channel
Motor Size:
Brushless 4258-Kv650
Propeller Size:
14x8, 3-blade
Retracts:
Yes
Rudder:
Yes
Servos:
(6) 17g Digital Metal gear, (1) 9g Digital Metal gear
Speed Control:
70A with 5a SBEC
Wing Area:
522.3 sq in (33.7 sq dm)
Wing Loading:
0.17oz/sq in (74.2g/sq dm)
Wingspan:
55.1 in (1400mm)
