● 모든 PNP 제품은 발송 전 개봉하여 각 전자장치 (서보, 모터, 변속기, 리트렉트, LED) 작동 테스트 후 발송됩니다.
● 아래 내용은 KIT, ARF, PNP 의 일반적인 제품 구성이며, 정확한 구성품은 각 제품의 상세 설명을 참고하십시오.
- KIT (키트) / ARF : 기체의 프레임(껍데기)와 하드웨어(링키지 등)만 있으며, 전자 기자재는 일체 미포함
- PNP : 기체의 프레임 및 전자 기자재(모터, 변속기, 서보 등)가 함께 포함(또는 조립완료) 되어 있음. 송수신기 및 배터리 관련은 미포함.
- BNF : 기체의 프레임 및 전자 기자재(모터, 변속기, 서보, 수신기)가 조립 완료되어 있음. 조종기는 미포함이며, 특정 조종기만 사용 가능.

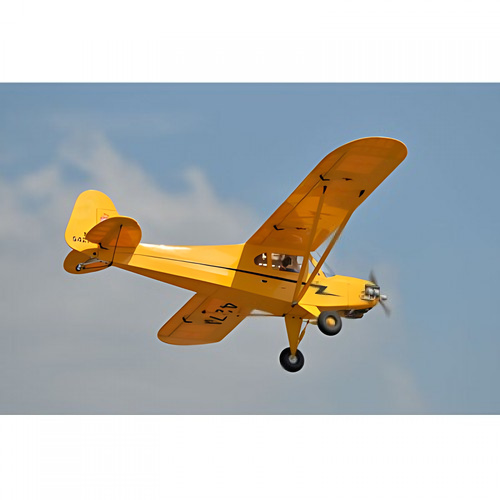

Coast with a classic.
The 90.5" span Piper J-3 Cub GP/EP/Gas ARF combines classic looks with modern versatility! It arrives packed with superior scale details, including a realistic cockpit, instrument panel and pilot figure, operational cockpit side doors and functional panel flaps. For even more authenticity, add optional floats (LXGPSZ, sold separately).
- Compatible with glow, electric and gasoline power.
- Lightweight, laser-cut all-wood construction.
- Superb flying characteristics and an accurate scale outline.
- Two-piece wing simplifies assembly and transport.
- Detailed cockpit, instrument panel and pilot figure.
- Functional panel flaps.
- Quick-connect, streamlined wing struts.
- Operational cockpit side doors.
- Hard points for mounting the optional scale float kit (sold separately, LXGPSZ) are built into the fuselage.
- Factory-covered in high-quality film.
- High-quality hardware package.
FEATURES
Construction: Laser cut balsa and light plywood with hard points for mounting scale float kit (not included) built into fuselage, operational cockpit side-doors Wing: Two-piece with quick-connect, streamlined wing struts, dual servo control flaps and ailerons Covering: Hangaar 9 UltraCote Cowl: Canopy: Landing Gear: Wheels: Engine Mount: Two-piece composite plastic Motor Mount: Plywood Fuel Tank:
INCLUDES
Prebuilt and covered, Wing, Fuselage and Tail assemblies, Landing Gear, Wheels, Cockpit Instrument Panel, Painted Pilot, Hardware Package
REQUIREMENTS
Electric Power Brushless Motor: Rimfire 1.20 recommended Electronic Speed Control: Battery: 6S LiPo Battery Charger, LiPo Charging Bag
Glow Power Engine: 1.20 two-stroke Glow Fuel, Glow Starter, Electric Starter
Gasoline Power Engine: 20cc two-stroke
Radio: At least 8-channel Servo: 7 standard servo: 2 aileron 2 flap 1 elevator 1 rudder 1, throttle (if using glow or gasoline engine) Receiver Battery: 6.0V, at least 2400mAh NiMH Spinner: Propeller: Compatible with selected brushless motor, or glowgasoline, engine, Building and field equipment
SPECIFICATIONS
Wingspan: 90.5 (2300mm) Length: 60.6 (1541mm) Flying Weight: 13.2 - 14.3lbs (6000 - 6500g) Wing Area: 1219 sq in (78.6 sq dm) Wing Loading: 25.0ozsq in (76.3gsq dm) Wing Type: NACA airfoils Servo Mount: 0.83 x 1.6 (21 x 42mm)
![알씨뱅크 [Phoenix] 2300mm 파이퍼 컵 120급~20cc 엔진/전동 겸용 키트](../data/goods/fm33412_1792373941.jpg)
