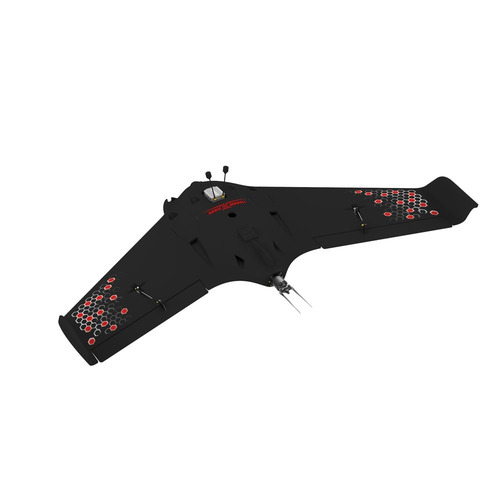

[SonicModell] 1000mm AR Wing Pro EPP FPV KIT

키트/PNP 제품 구입시 주의사항

● 제품 상세 설명을 반드시 참고하셔서 제품 구성품에 주의하십시오.

● KIT, ARF, PNP, COMBO 제품은 조종기가 포함되어 있지 않습니다.

● 모든 PNP 제품은 발송 전 개봉하여 각 전자장치 (서보, 모터, 변속기, 리트렉트, LED) 작동 테스트 후 발송됩니다.

● 아래 내용은 KIT, ARF, PNP 의 일반적인 제품 구성이며, 정확한 구성품은 각 제품의 상세 설명을 참고하십시오.

- KIT (키트) / ARF : 기체의 프레임(껍데기)와 하드웨어(링키지 등)만 있으며, 전자 기자재는 일체 미포함

- PNP : 기체의 프레임 및 전자 기자재(모터, 변속기, 서보 등)가 함께 포함(또는 조립완료) 되어 있음. 송수신기 및 배터리 관련은 미포함.

- BNF : 기체의 프레임 및 전자 기자재(모터, 변속기, 서보, 수신기)가 조립 완료되어 있음. 조종기는 미포함이며, 특정 조종기만 사용 가능.

Description:

Brand Name: Sonicmodell

Item Name: AR Wing Pro

Material: High Quality EPP

Wingspan: 1000mm (39.37'')

Length: 450mm (17.71'')

Version: KIT

KIT Empty Weight: 340g

PNP Empty Weight: 500g

Recommended Sonicmodell Power Combo Configuration:

Motor: 2216-1400KV (미포함)

ESC: 40A w/5V 3A BEC (미포함)

Servos: 2pcs 9g metal gear servo (미포함)

Propeller: 2 blades 8x5 (미포함)

Recommended Battery: 4S 3200-3500mAh Lipo, ZOHD Lionpack 18650 4S2P 7000mAh, (미포함)

추천기자재

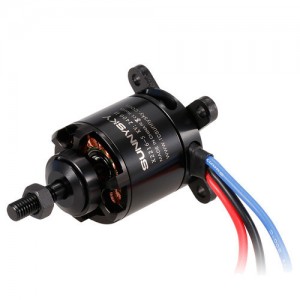

[SUNNYSKY] X2216 2400KV 브러쉬리스 모터
모터규격:28x34mm
36,800

[FMS] 프레데터 50A 브러쉬리스 변속기 - 2~6셀 5.0V 5A BEC 내장
FMS PREDATOR ESC 50A 2-6S
59,800

[EMAX] ES09MA 메탈기어 아날로그 서보
(Dual-Bearing) 14.8g/ 2.6kg/ .08 sec Analog Servo (for 450 Heli swash)
18,500

Recommended Flying Capability:

Min. recommended Speed: 31km/h

Max. Speed (with SM power combo): 130km/h

Cruise Speed (with Sonicmodell power combo): 75/80km/h @ 5.5A

Max. Speed Tested Without Structural Failure: 220km/h with no structural damage or twist on elevons

Max. Recommended Takeoff Weight (with SONICMODELL power combo): 1425 grams

Reflex On Elevons: 1.5-2mm at level

Recommended Max. Throws: 12mm

Features:

- The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System, no need any cut or DIY to fit the DJI System.

- Aerodynamic designed FPV pocket in both sides of fuselage, with high efficient NACA air cooling system to ensure the FPV gear work in perfect condition.

- Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability and crash resistance.

- Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market.

- Nose camera slot compatible with all HD Auction cameras (for Gopro, DJI, Runcam etc) in the market.

- Multiple tunnels inside all quipment bays, easy to layout wire between each bay.

- Detachable main wing and wing tip, glue-free assembly, portable for outdoor flying.

- Built-in CF rod in the ailerons will give precision and sharp action to your inputs.

- High accurate ball link control system brings agile and quick response in control.

- Special-designed “servo arm built-in” structure will protect your servo arm from impact.

- Large battery bay for extended flight time and more rooms for various Flight Controller.

- Decent rear bay for ESC, isolate interference from other FPV equipment.

- Built-in plate inside fuselage for extra enhancement.

- Extra CA Hinges for DIY will bring you more stiff and agile control.

- Optimized air-cooling design will keep your gear safe from overheating.

English Manual, Click Here

KIT Includes:

SONICMODELL AR Wing Pro KIT with all hardware.

KIT Package Size: 42*31*15.5cm

KIT Package Weight: 1200g

Note: Motor,esc, servos, propeller, battery, charger, transmitter and receiver are not included.

FPV 영상 장비는 별매입니다.
