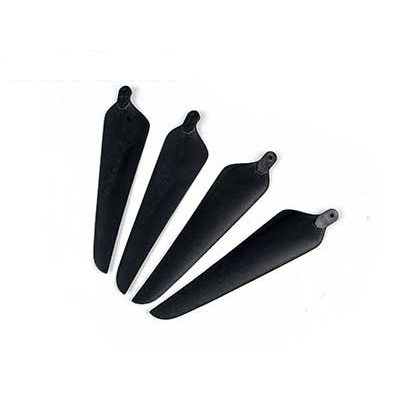

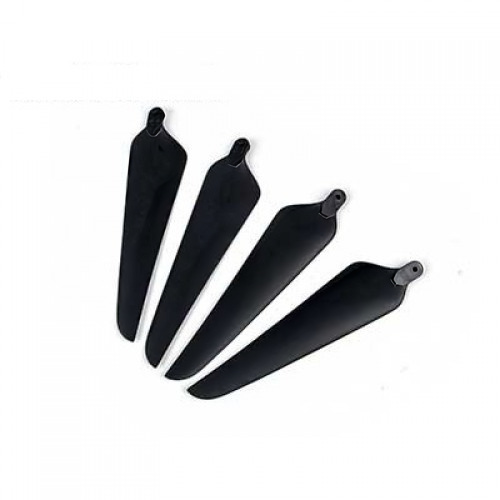

[TR] High Efficiency 18x6.5in Folding Prop Set(CW/CCW)

TAROT High Efficiency 18x6.5in Folding Prop Assy'(CW/CCW)

타롯사의 18x6.5in 폴딩 프롭 세트.

CW/CCW 페어 구성으로서 프롭 허브는 제외된 사양입니다.

<Product Description>
·Tarot's new 1865 folding propeller
·Moulds made with the Swiss MIKRON 5-axis machining centre
·Matching high-strength engineering materials
·Optimised wing structure designed to ensure good flexibility and stability
·More than 10% efficiency gain and more power reserve
·Suitable for multi-axis multi-rotor UAVs such as 4-axis, 6-axis and 8-axis

<Product Parameters>
Total length of paddle:210mm
Length from mounting hole to paddle tail:199mm
Diameter of mounting hole:3mm
Paddle root thickness:5mm
Weight per blade:28.5g/blade

<Associated Product No.>
Tarot 15inch Metal Foldable Propeller Holder/B TL100B15
Tarot 15inch Metal Foldable Propeller Holder/R TL100B16
Tarot Propeller/18" High Efficiency CW/CCW holder Set/1865 TL100D21
Tarot 18X6.5J Martin Foldable Carbon Fiber props(CW and CCW)/4 Pieces TL3028

<Product Specifications>
1865 CW Paddle/single(28.5g)(210mm)×2
1865 CCW Paddle/single(28.5g)(210mm)×2
Teflon gasket(0.05g)(M3×8×0.5)×4
Shaft sleeve screw(0.6g)(M3×11.3mm)×2

<제품 이미지>
