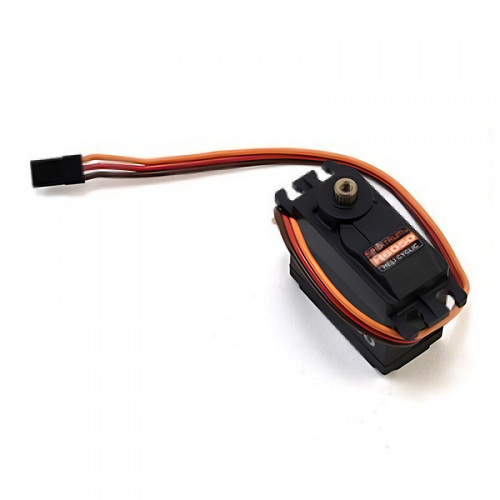

[SPEKTRUM] Spektrum RC H6050 High-Torque Mid-Speed Heli Cyclic Servo

The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.

Features:

• Standard size servo for 500 size Helicopter models and smaller
• 160oz Torque and .103 sec speed at 6.0v
• 4.8v-6.0v input voltage
• Long 10 inch (255mm) connector wire to reduce the need for extensions
• 23 Tooth spline
• Bearing supported output spline

Specifications:
Size Category: Standard
Type: Digital
Application: Heli Tail
Torque: 160 oz-in (11.5 kg-cm) @ 6.0V
Speed: 0.103 sec/60 deg @ 6V at no load
Length: 1.57 in (39.9 mm)
Width: 0.78 in (19.8 mm)
Height: 1.57 in (39.9 mm)
Weight: 2.2 oz (62g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Z-Connector
Gear Type: Metal
Gear Material: Alloy
Voltage: 4.8-6.0V
Deadband: Less than 1µs
