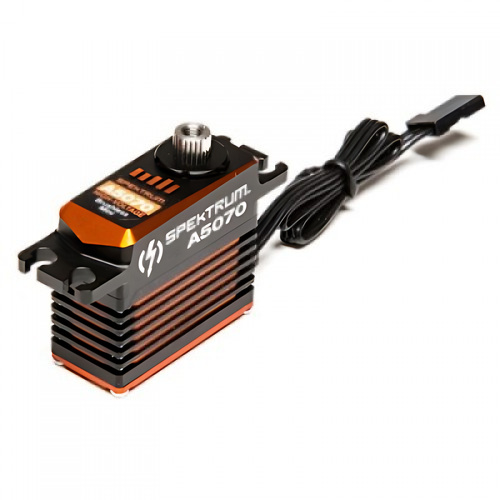

[SPEKTRUM] A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo

상품번호: QQ86199
알씨뱅크 SPMSA5070 [SPEKTRUM] A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo
제품 정보
제조사 SPEKTRUM
제품코드 SPMSA5070
상품번호 QQ86199
스마트 검색같은 규격 서보 찾기
스탠다드 (40~79g)토크 8~15kg·cm
조건은 스마트 검색 화면에서 더하거나 뺄 수 있습니다.
같은 조건 서보 62개 보기 ›
판매가270,000원
적립금2,700원Npay 적립구매 금액 4%
일시 품절 · 주문 불가품절
구매수량 : 품절된 상품입니다
총 금액 :
재입고 알림 카톡문의

상세정보
상품후기
상품문의
교환/반품
제품 사양
무게
40g
토크
13.7kg.cm
크기
33.5 x 14.9 x 29.4mm

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate. The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.

  • High torque both on HV and non-HV applications
  • Allows BECs of adjustable BEC ESCs to be set higher to increase performance
  • Acts as a heat sink for the motor and ESC
  • Low deadband, high resolution, with impressive holding torque for unmatched performance
  • Durable high performance finish
Wire Gauge22 AWG
BearingDual
Bushing Or BearingBearing
Gear TypeMetal
Maximum Servo Speed0.050-0.099 sec
Motor TypeBrushless
Servo Operating Voltage6.0 - 8.4V (HV)
Servo Size CategoryMini
MaterialMetal
ProgrammableNo
ApplicationAir
Max Servo Torque100-199 oz-in
Overload ProtectionYes
Product Weight1.4 oz (40g)
Maximum Servo Torque146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
Connector TypeUniversal
Product Length1.32 in (33.5mm)
Rotation Range120?
Deadband2?s
Product ApplicationAir
Product Height1.16 in (29.4mm)
Servo TypeDigital
Connector Wire Length11.8 in (300mm)
Product Width0.59 in (14.9mm)
