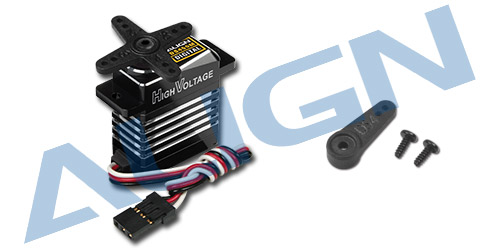

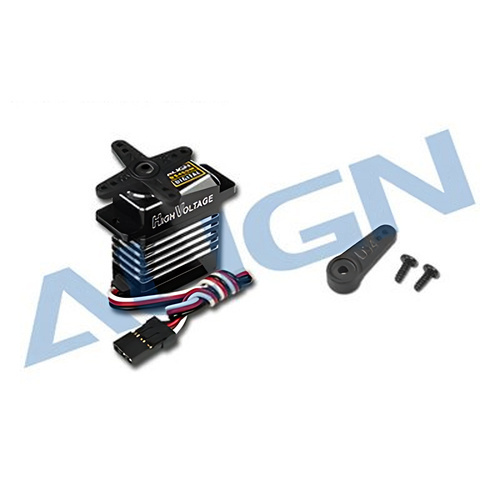

ALIGN RC DS455M Digital Servo

ALIGN사의 T-Rex250/450L/470L급 전동헬기용 디지털 서보 시스템.(Tail용)

메인 케이스는 원활한 방열 효과를 위해 NC 커팅으로 Slit 가공, 아울러 Upper Case 역시 정밀 CNC 가공된 제품으로서 기존 플라스틱 하우징을 채택한 마이크로 서보 대비, 추락시 탁월한 내구성을 보증합니다.

●Faster speed with high torque performance, allowing helicopter to perform with faster and higher precision.
●High rigidity, shock resistant metal gears with high strength composite alloy gears with durable structure characteristics.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Powerful and precise servo, suitable for T-Rex 250/450 rudder use.
●Supports 8.4v high voltage input to provide optimal speed and torque performance of the servo.　

<제품사양>

●Stall torque: 2.2kg.cm(6.0V)
                    2.9kg.cm(8.4V)
●Motion speed: 0.05sec/60°(6.0V)
                       0.04sec/60°(8.4V)
●Rating voltage: DC 6.0-8.4V
●Temperature range: -20°C ~ +60°C
●Dimension: 23 x 12 x 31.3mm
●Weight: 20g

<제품구성>

●DS450 Digital Servo x 1
●Socket Button Head Self Tapping Screw x 2
●Socket Screw x 1
●Servo Arm x 2
