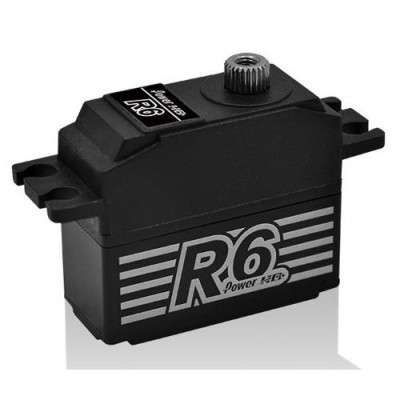

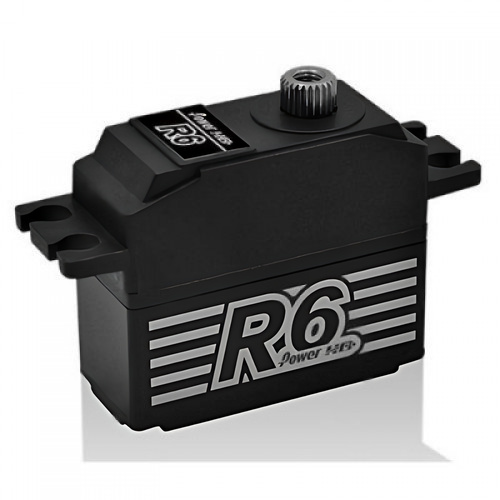

[POWER HD] (1:12 퓨어) R6 1/12th pan car servo 7.5kg / 0.08sec

Power HD have introduced their new R6 servo for 1/12th pan cars. Featuring a coreless motor it pulls up to 7.5kg-cm of torque at a speed of down to 0.08s and thanks to its lightweight construction, it weighs only 28.5g. The high-voltage compatible servo is usable with 4.8V to 8.4V input and uses copper and aluminum gears.

R6 Specifications:

• Torque(6.0V): 6.5 kg-cm (90.26 oz/in)
• Torque(7.4V): 7.5 kg-cm (104.0 oz/in)
• Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
• Operating Voltage: 6.0 ~ 8.4 DC Volts
• Weight: 28.5 g (1.01 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type: Coreless Motor
• Gear Type: Copper & Aluminum
• Operating Temperature：-20℃~60℃
• Working frequence: 1520μs / 333hz
• Size: 35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
•
